Max. diameter of the workpiece, mm - 6300
Max. height of the workpiece, mm - 3200
Diameter of faceplate, mm - 6300
Max. travel of carriers of vertical supports, mm - 2000
Max. angle of rotation of supports, degree - -15 +30
Max weight of workpiece, fixed on faceplate, kg - 125 000
Max cutting force on right saddle, kgs - 10 000
Max cutting force on left saddle, kgs - 8 000
Max summary cutting force on both saddles, kgs - 16 000
Max cutting moment on faceplate, kgm - 40 000
Limits of frequency of faceplate's rotation, rev/min 0.28-25.5
Limits of vertical and horizontal feeds, mm/min - 0.0352 - 285

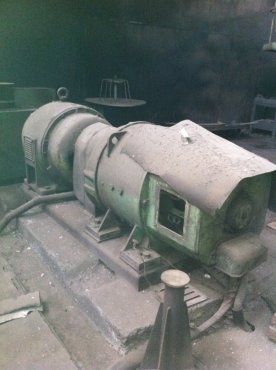

Powerof main actuator, kW - 125
Height over floor level, mm - 8300
Dimensions, mm:
- length 8 200
- width 14 200
- height 9 800
Weight, kg - 233 000
