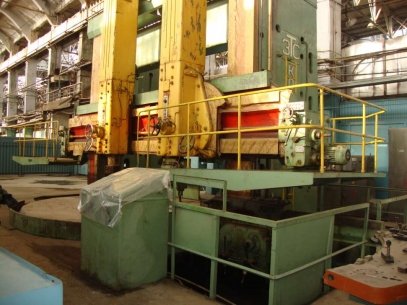

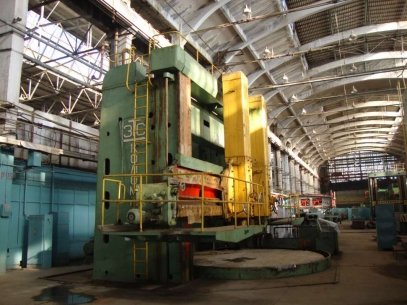

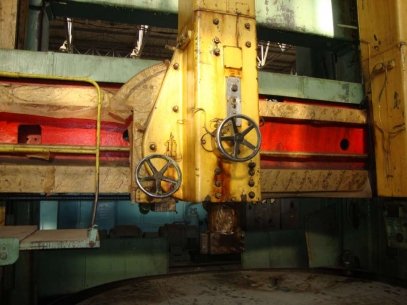

Vertical turning lathe KOLOMNA 1565 made in Russia.
Specifications:
Type: double column vertical lathe
Max work-piece diameter:
-With side support: 5000 mm
-W/O side support: 5850 mm

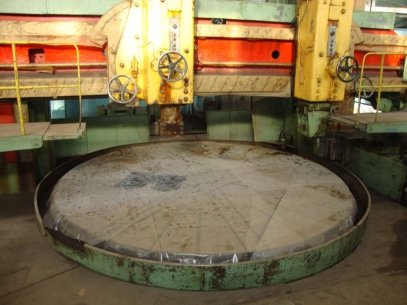

Diameter of a faceplate: 4000 mm
Height of a work-piece: 3000 mm
Min work-piece diameter with a side support: 2000 mm
Max work-piece weight: 45 ton
Table speeds: 0.6 - 20.7 rpm
Amount of feeds: 12
Support feeds per 1 table revolution: 0.2-15 mm/rev
Rapid feeding:
-Of supports: 2800 mm/min
-Of slide-block: 3200 mm/min
Max slider stroke: 1400 mm
Rapid support stroke: 2200 mm/min
Right slider type: turning
Left slider type: combinated

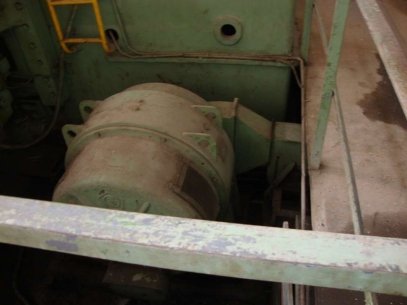

Capacity of the main drive: 70 kw
