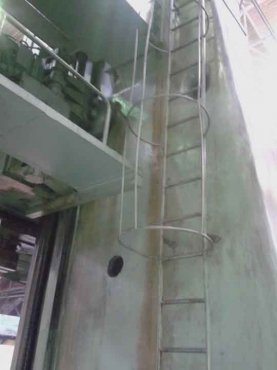

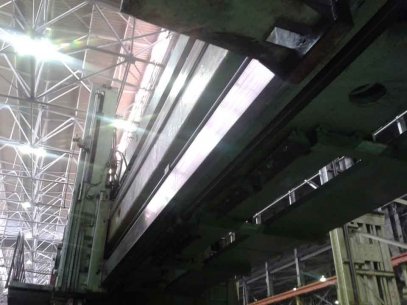

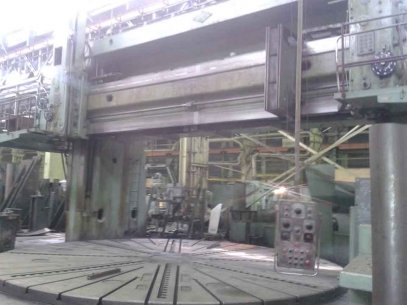

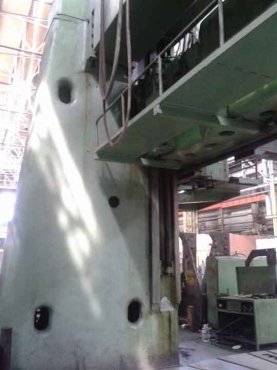

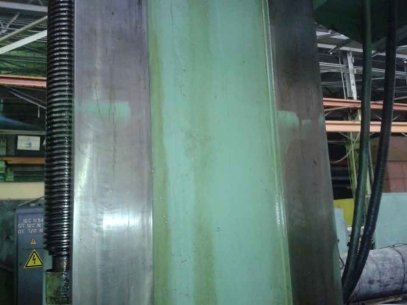

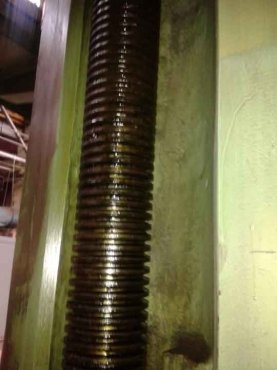

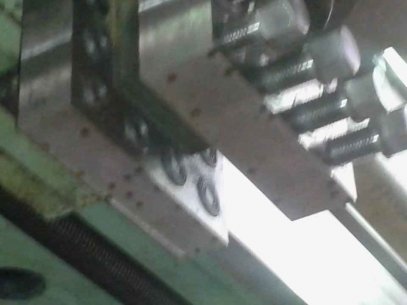

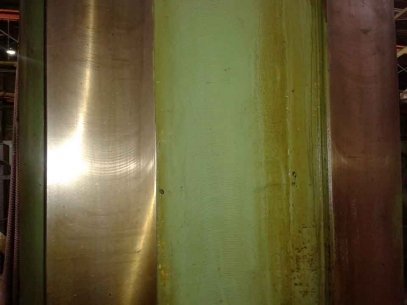

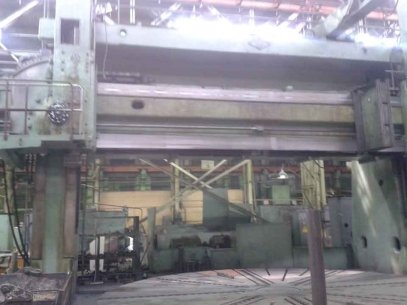

Vertical turning lathe KOLOMNA 1580L made in Russia.
Specifications:
Type: double column vertical lathe
Swing: 8000 mm
Diameter of a faceplate: 7100 mm
Height of work-piece: 3200 mm
Max slider stroke: 2000 mm
Right slider type: turning
Left slider type: combinated
Corner of supports turn: -15+30 degrees
Weight of the work-piece on a faceplate: 125000 kg
Effort of cutting to a right support: 10000 kN
Effort of cutting to the left support: 8000 kN
The max total effort of cutting by two supports: 16000 kN
Max torque at the faceplate: 40000 kgm
Table speeds: 0,22-18,3 rpm
Feeding: 285 mm/min
Capacity of the main drive: 125 kW
Height above a level of a floor: 8300 mm
