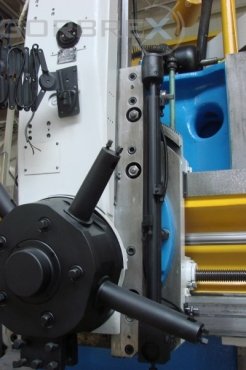

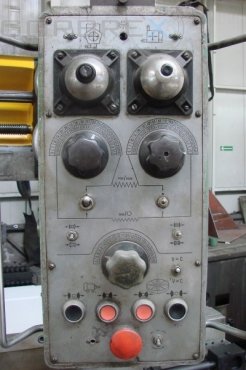

Vertical Lathe SEDIN Model: 1516
Manufacturer: SEDIN - Russia
Model: 1516
New in: 1984
Condition: very good, complete, revised, painted, under power
Localisation: our workshop, Rudniki - Poland
Specifications:
Technical details
Turning diameter : 1 600 mm
Faceplate diameter: 1 400 mm
Max workpiece height : 1 000 mm
Max table loading : 5 000 kg
Max horizontal ram travel : 630 mm
Max horizontal carriage travel : 975 mm
Max vertical ram travel : 700 mm
Max vertical carriage travel : 1 000 mm
No of feed carriages : 16
Carriages feed range : 0,07 - 12,5 mm/rev
Distance between table and ram 0-1 225 mm
Main motor power : 30 kW
Speeds range : 4-200 rpm
Dimensions : 3 190 x 3 360 x 4 100 mm
Machine weight : 18 000 kg
