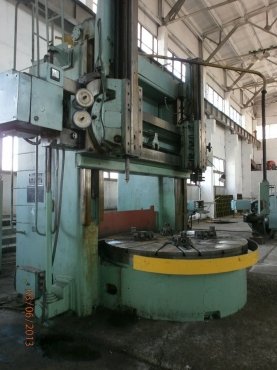

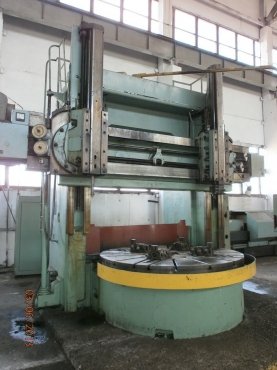

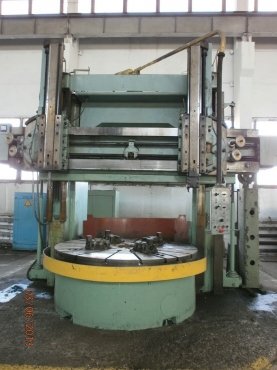

Manufacturer: SEDIN - Russia
Model: 1525
New in: 1982
Condition: very good, complete, no missing or broken parts

Technical details
Table diameter: 2250 mm
Distance between table and ram: 0-1780 mm
Distance between table and lower surface of trasversal beam: 400-1640 mm
Max. workpiece diameter: 2500 mm
Max. workpiece height: 1600 mm
Carriages number and type: 2 ram type
Table speeds number: 18
Table speeds range: 1.6-80 rpm
Carriages feeds number: 16
Carraiges feeds range: 0.09- 16 rpm
Trasversal beam feeding: 360 mm/min
Main motor: 40 kW, 1500 rpm
Trasversal beam feeding motor: 5.2 kW,1500 rpm
Trasversal beam clamping motor: 2 kW, 1500 rpm
Carriages feeding motors ( 2 pcs): 3 kW, 1500 rpm
Lubrication unit motor: 1.7 kW, 1500 rpm
Max. ram travel: 1200 mm
Max. horizontal travel of carriage: 1390 mm
Max. swivel angle: 30 degrees
Max. distance between axis of ram: 560 mm
Max. knife intersection: 40 x 60 mm
Cone metric diameter: 80 mm
