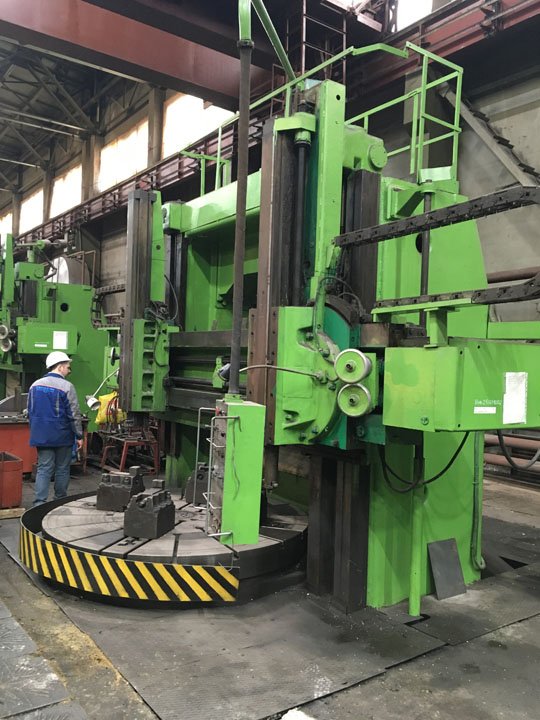

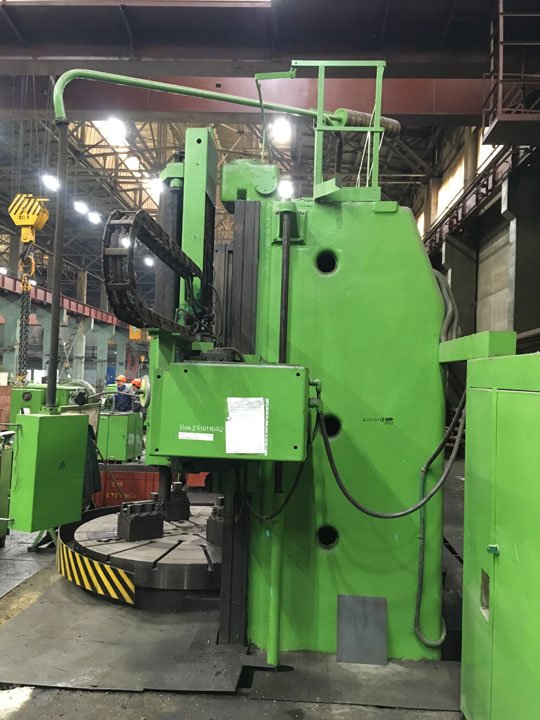

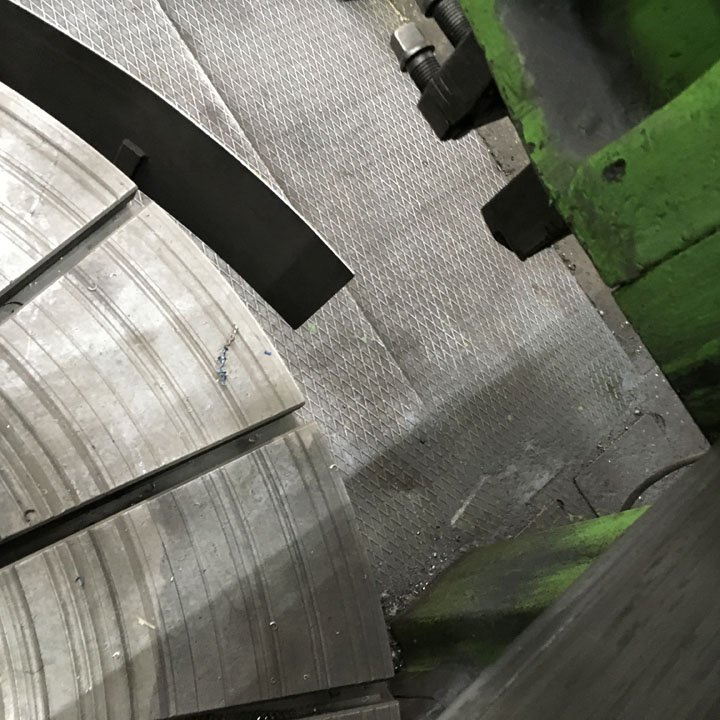

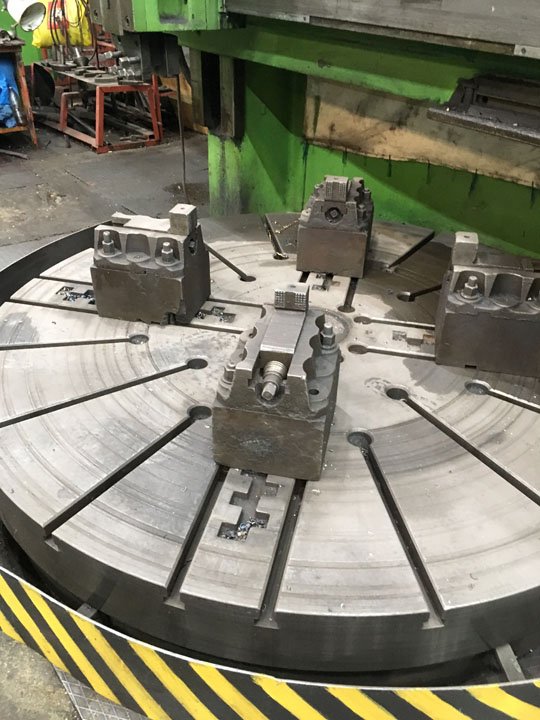

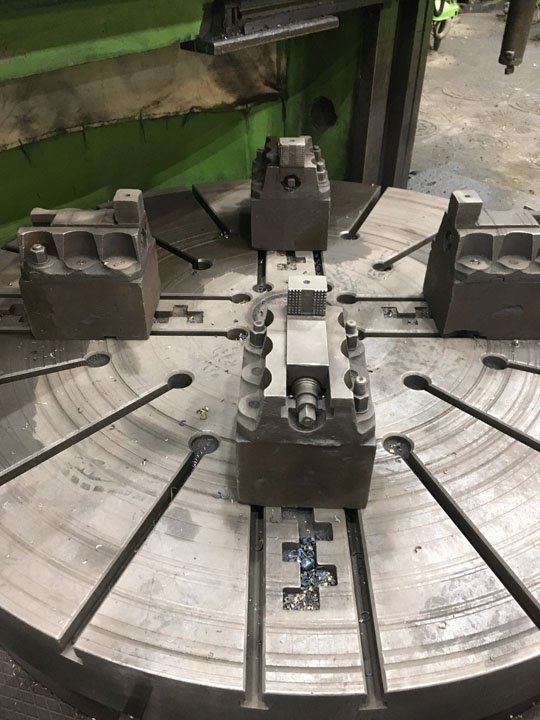

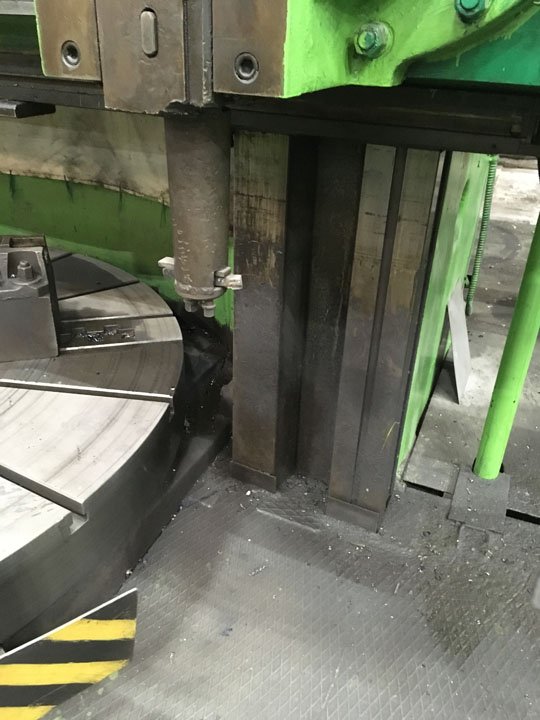

TABLE
Table diameter: 2250 mm
Distance between table and ram: 0 - 1780 mm

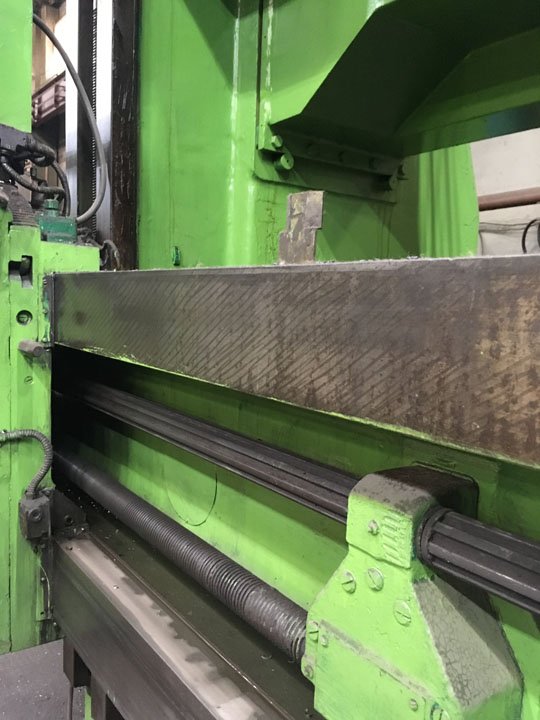

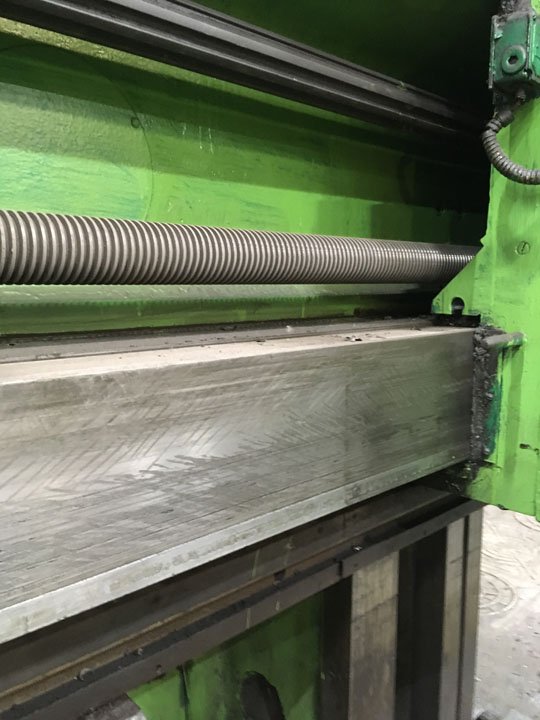

Distance between table and lower surface of traversal beam: 400 - 1640 mm
WORKPIECE
Max swing diameter: 2500 mm
Max work-piece height: 1600 mm
Max work-piece weight: 11400 kg

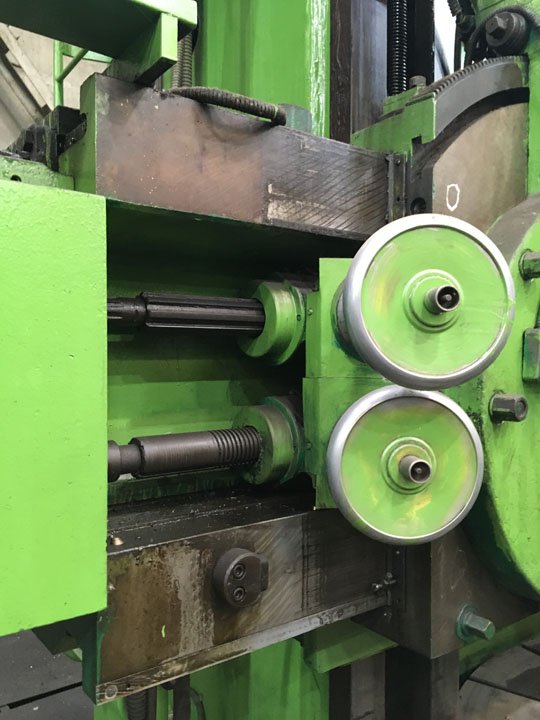

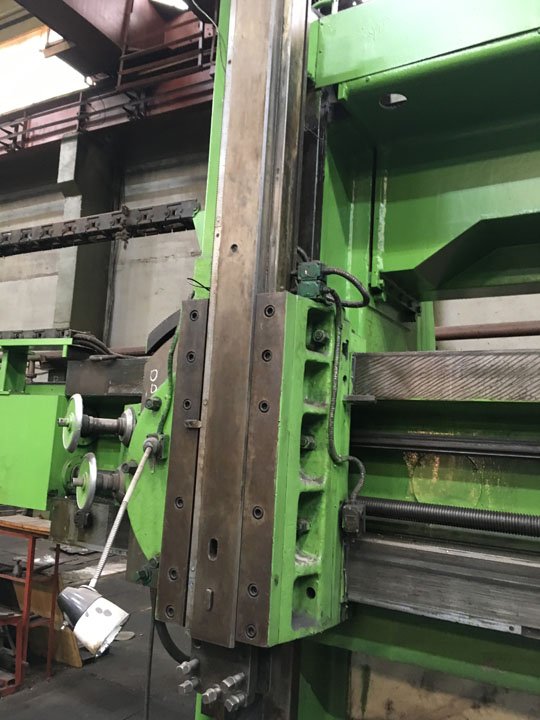

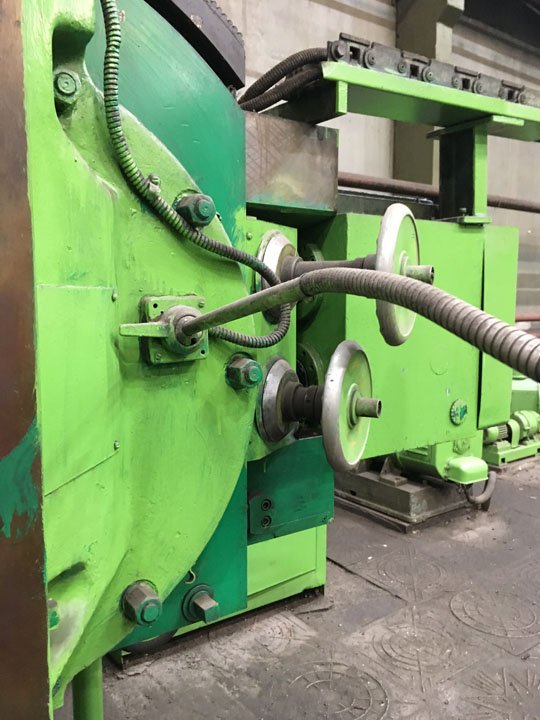

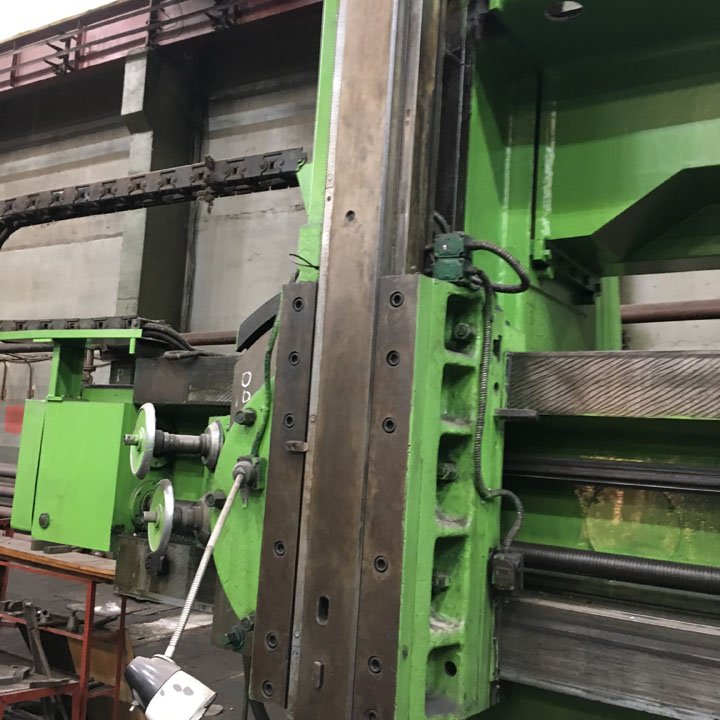

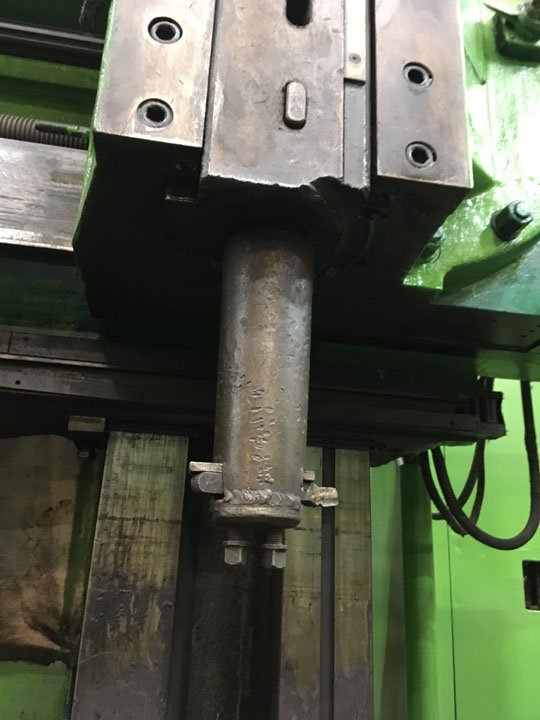

CARRIAGE
Max ram travel: 1200 mm
Max horizontal travel of carriage: 1390 mm
Max swivel angle: 30 degrees
Max distance between axis of ram: 560 mm
Max knife intersection: 40 x 60 mm
Seat diameter ( metric cone ): 80 mm
MECHANICAL UNIT
Carriages number and type: 2 vertical - ram type
Table speeds number: 18
Table speeds range: 1.6 - 80 rpm
Carriages feeds number: 16
Carriages feeds range: 0.09 - 16 rpm
Rapid feeds of carriage: 10 - 1780 mm/min
Traversal beam feeding: 360 mm/min
MOTORS AND OVERALL DIMENSIONS
Main motor 40 kW , 1500 rpm
Traversal beam feeding motor: 5.2 kW , 1500 rpm
Traversal beam clamping motor: 2 kW, 1500 rpm
Carriages feeding motors ( 2 nos ): 3 kW , 1500 rpm
Lubrication unit motor: 1.7 kW, 1500 rpm
