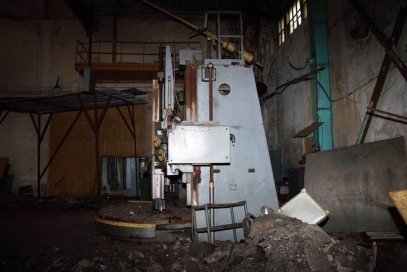

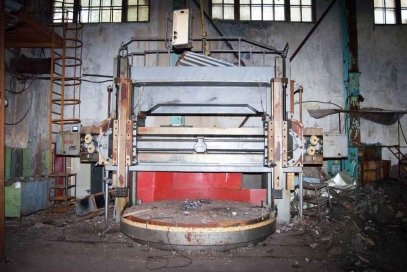

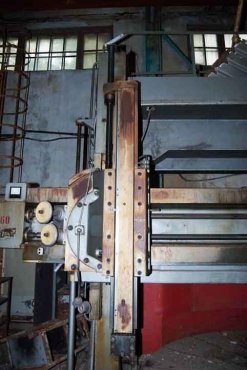

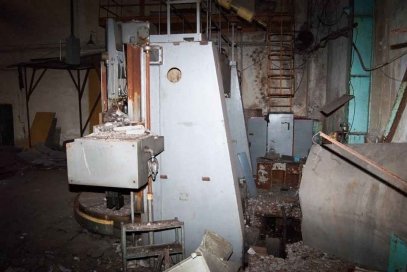

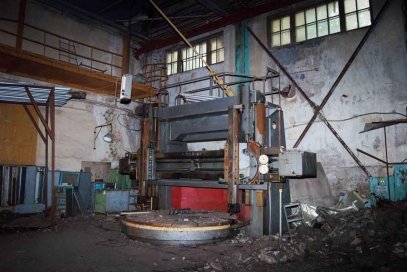

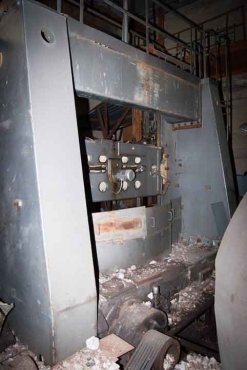

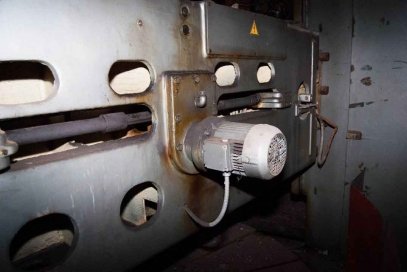

Vertical turning lathe SEDIN 1L532 made in Russia.
Specifications:
Table diameter: 2800 mm
Swing: 3150 mm
Max work-piece height: 1600 mm
Max table loading: 16 t
Max ram travel: 1200 mm
Max horizontal travel of carriage: 1720 mm
Carriage inclination angle: 30 dgr
Carriage feeds number: 16
Carriages feeds range: 0.09 - 16 mm/rev
Feeds of traversal beam: 360 mm/min
Max distance between ram's axis: 360 mm
Distance between table and ram: 0 - 1780 mm
Distance between table and lower surface of traversal beam: 400 - 1640 mm
Revolution speeds number: 18
Table speeds: 1.25-63 rpm
Main engine power: 55 kW
