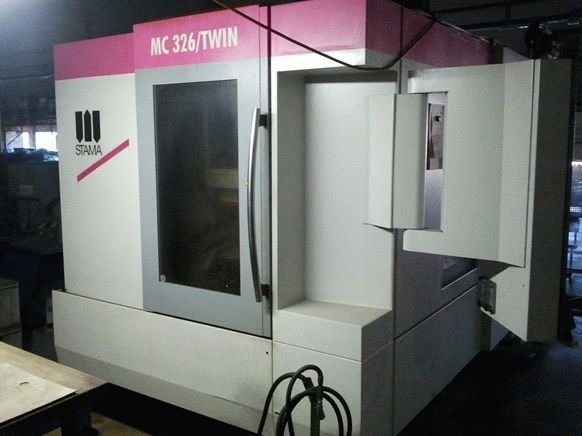

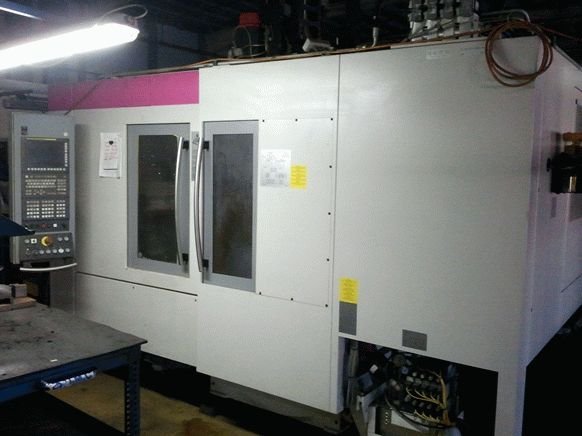

Twin Spindle Vertical Machining Centre - 4-Axis + Pallet changer
Model MC-326 Twin
Rotary Table size (pallet changer): Ø 1250 mm
Pallet clamping surface: 2 x 700 x 350 mm
loading capacity: 2 x 450 kg
change time: 1.9 sec.
4th Axis NC-Rotary Table: 2 x Ø 180 + Clamping bridge mm
Table longitudinal travel: X 520 mm
Cross travel: Y 360 mm
Vertical travel: Z 260 mm
Vertical clearance spindle to table: 305 - 665 mm
Feed force: X/Y 4000 N
Feed force: Z 8000 N
Feedrates: X/Y/Z 1-10000 mm/min.
Rapids up to: X/Y/Z 60000 mm/min.
Acceleration: X/Y/Z 5/8/12 m/sec²
Spindle diameter: 65 mm
Spindle motor rating: 19/21 KW
Spindle speeds: 36-12000 rpm

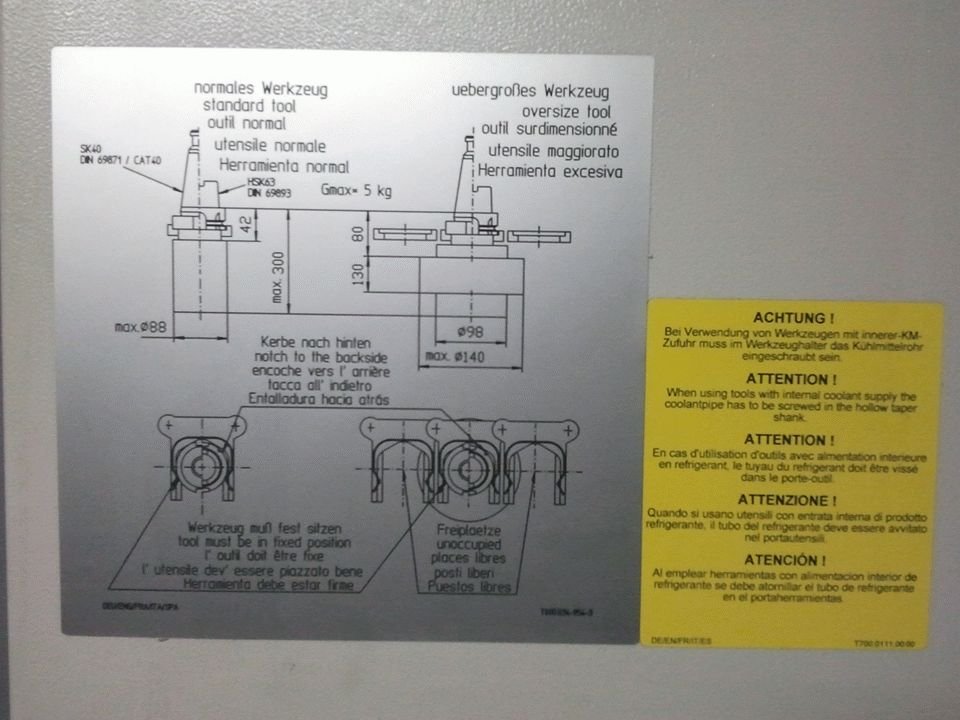

Tool taper: HSK-A63
Tool length: mque: 100% 30 Nmax. 300 mm
Tool weight: max. 5 kg
Chip to chip time: 2.4 sec

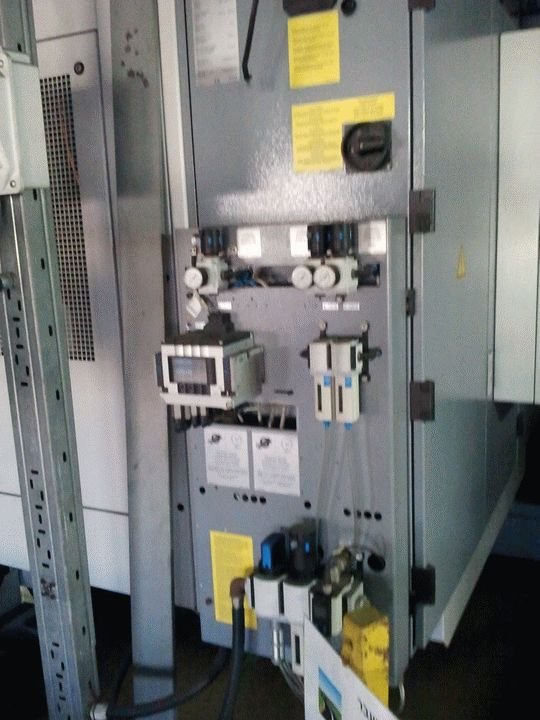

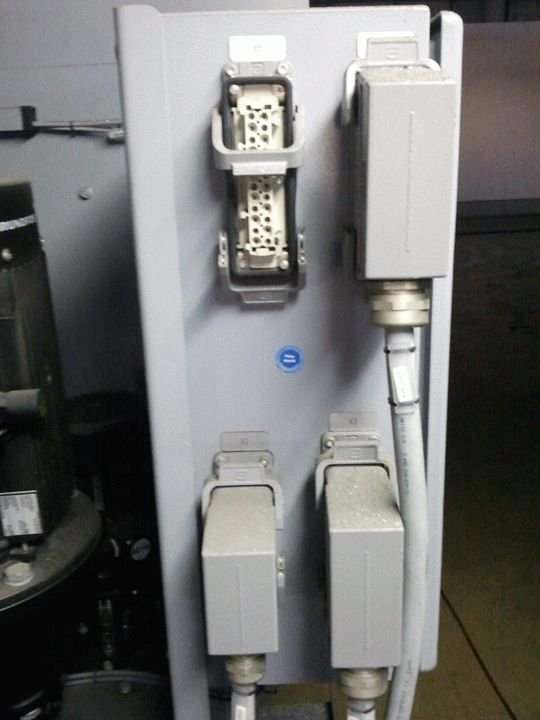

Total power requirement: 50 kVA
Machine weight: approx. 5500 kg
Machine size: LxWxH 4100 x 5300 x 3200 mm

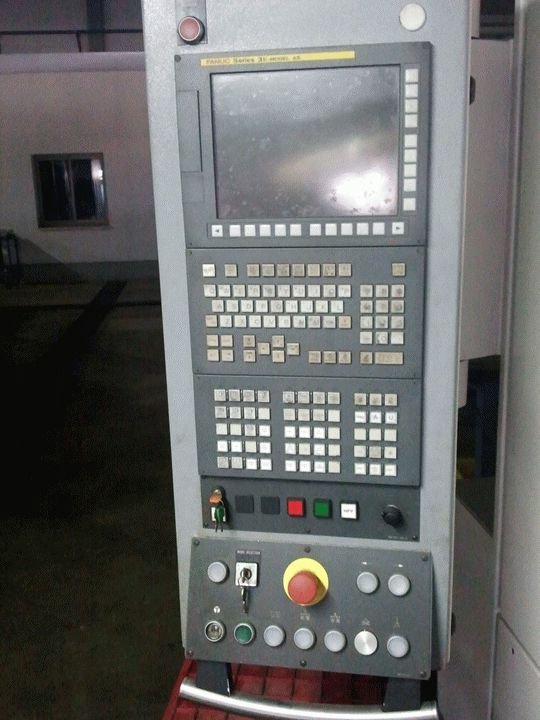

Tool input station with menu guide
Measuring systems, X + Y + Z Linear scales
Main time parallel loading - / unloading
completely machined in two clamping positions.
Ideal for highly productive serial production.
The integrated 180 ° swiveling table has two separate working areas.
In the first working area cutting, in the second working area parallel loading / and unloading
And vice versa.
Axes movable with door open: activation with push button and confirmation key
Axes move up to 2000 mm / min.
Spindle up to 800 rpm.

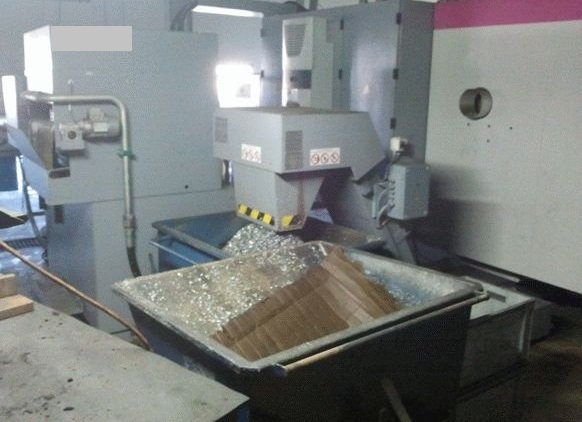

Coolant system with chip conveyor ejection height 850 mm
Coolant tank capacity 500 l

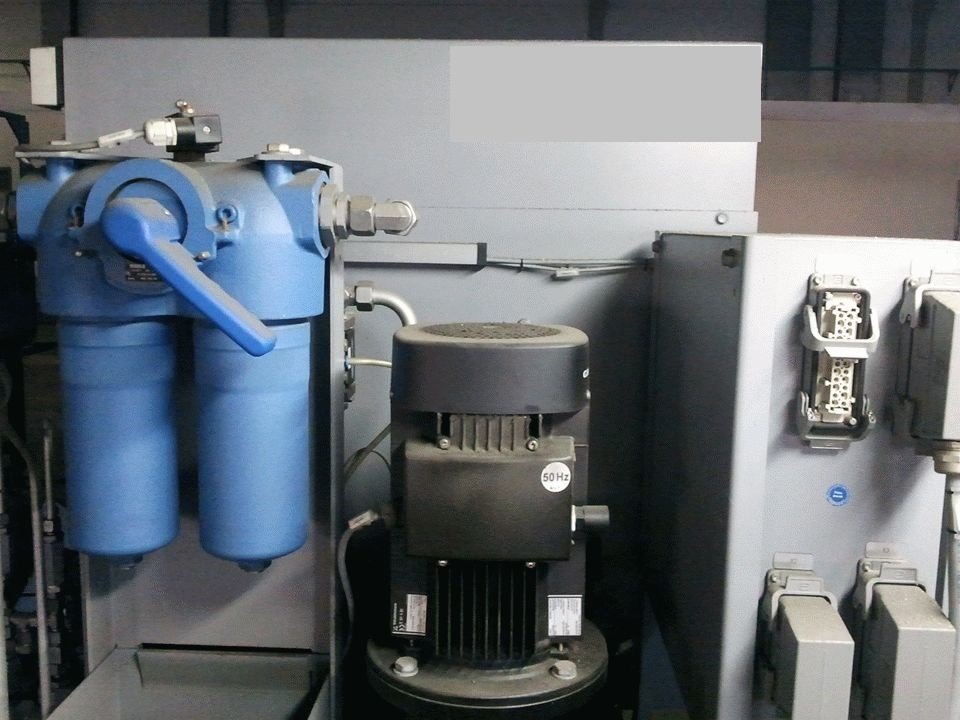

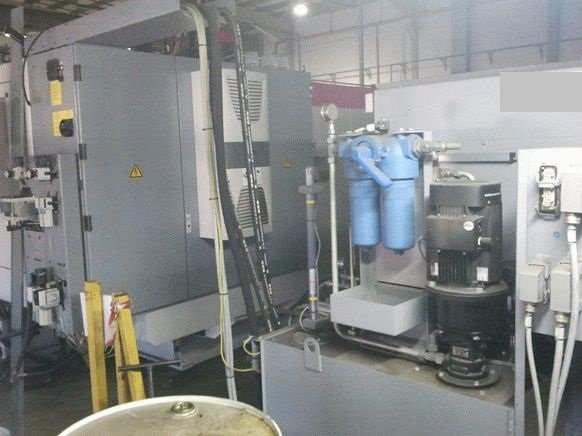

Internal cooling 20 bar
Renishaw measuring probe
Tool breakage monitoring by laser
Full covered working area
(Optionally available are the clamping device bridges OP10 and OP20)
