Turning diameter: 3200 mm.

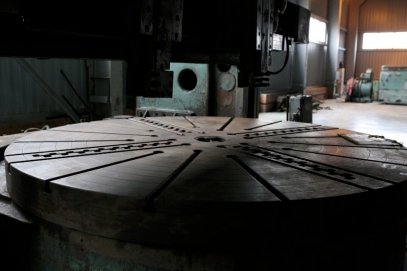

Faceplate diameter: 2800 mm.
Turning height: 1600 mm.
Workpiece weight: 16000 kg.
Number of tool slides: 2.
Horizontal stroke of tool slide: 1720 mm
Vertical stroke of tool slide: 1200 mm.
Tool slide positioning speed: up to 1780 mm/min.
Transversal beam feed: 360 mm/min.
No of feed carriages: 16.
Carriages feed range: 0, 09 -16 mm/rev.
Crossrail travel: 1240 mm.
Faceplate speed: 0, 25-63 rpm.
Main drive power, kw 55.
Overall dimensions: 5640 x 7150 x 4900 mm.
Machine weight: 43.000 kg.
