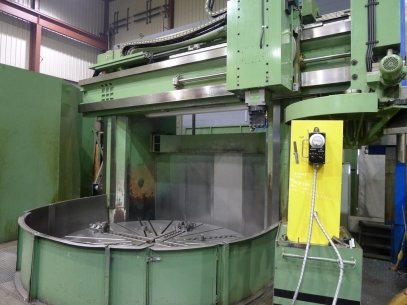

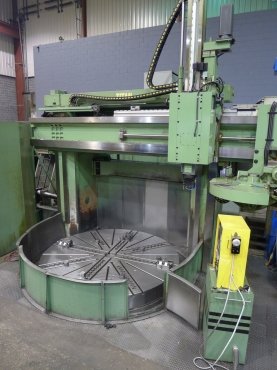

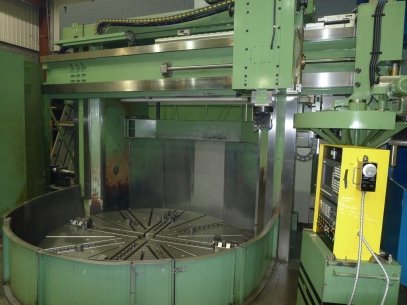

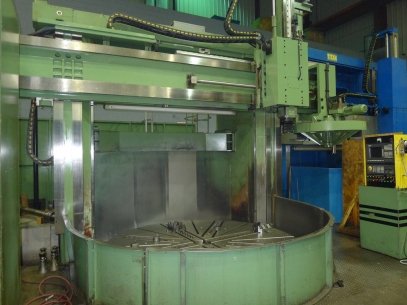

TITAN CNC VERTICAL BORING MILL
YEAR: 2000

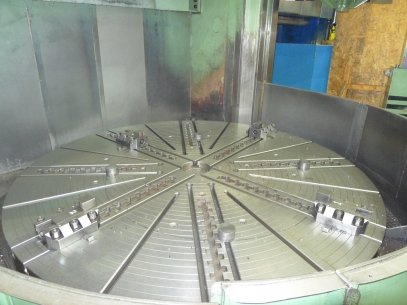

Faceplate Diameter 3000 mm - 118"
Maximum Machining Diameter 3300 mm - 130"
Maximum Work piece Height:
Under the cross rail 2000 mm
Under the tool holder 1780 mm
Maximum work piece weight:
- At n= 20 rpm 20 Tons
- At n= 150 rpm 12 Tons
Main drive motor power 60 kW
Cross-rail travel on the columns 2000 mm

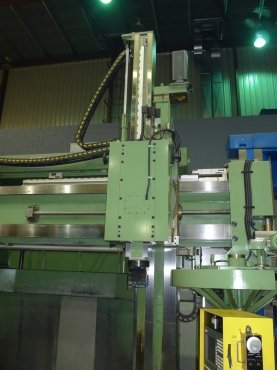

Vertical ram travel (Z axis) 1115 mm
Ram cross section 250 X 250 mm
Head tilting angle + AND - 30 DEG.
Feed range 1-4000 mm/min
Rapid positioning feed 6000 mm/min
EQUIPPED WITH:
- Four jaws

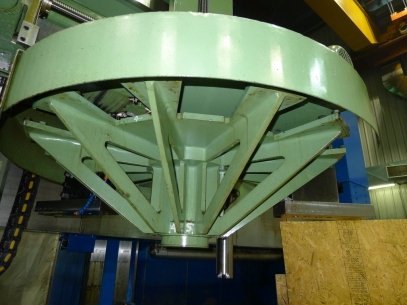

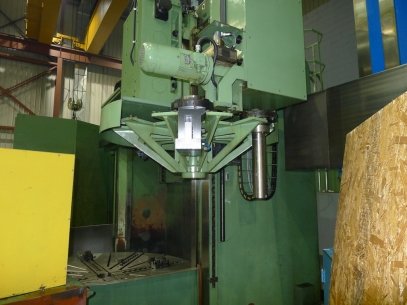

- 12 Tool ATC

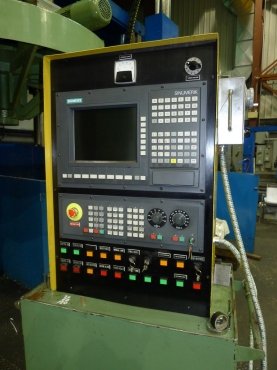

- SIEMENS 840C CNC CONTROL
Machine Dimensions (L x W x H): 296" x 214" x 303"
Approx. Machine Weight: 112,359 lbs.
EX WORK CANADA - Inspect under power in Canada!
AVAILABILITY: IMMEDIATE CONDITION: EXCELLENT
