For Sale Listings
TITAN, SC-33, VERTICAL TURNING, LATHES
  • Condition:Used
  • Category:LATHES
  • Type:VERTICAL TURNING
  • Manufacturer:TITAN
  • Model:SC-33
  • YOM:-
  • Location:Lithuania, Vilnius
  • Price:On request
  • Stock No:-
  • Control:-
  • ID:AS28786
Description:

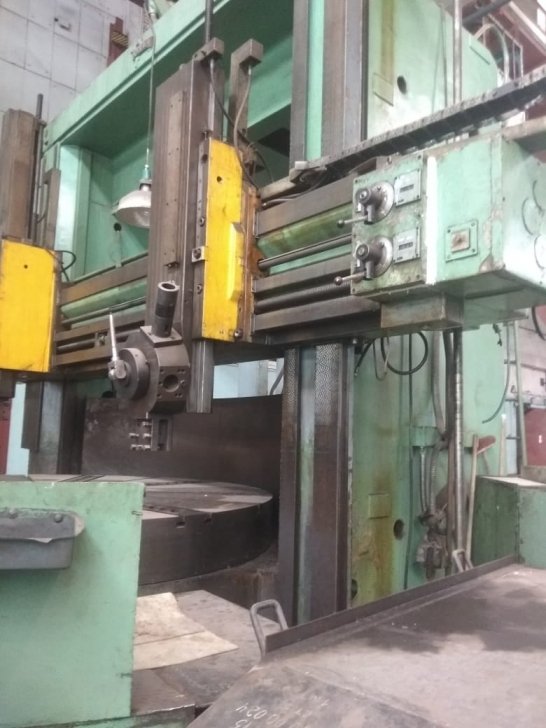

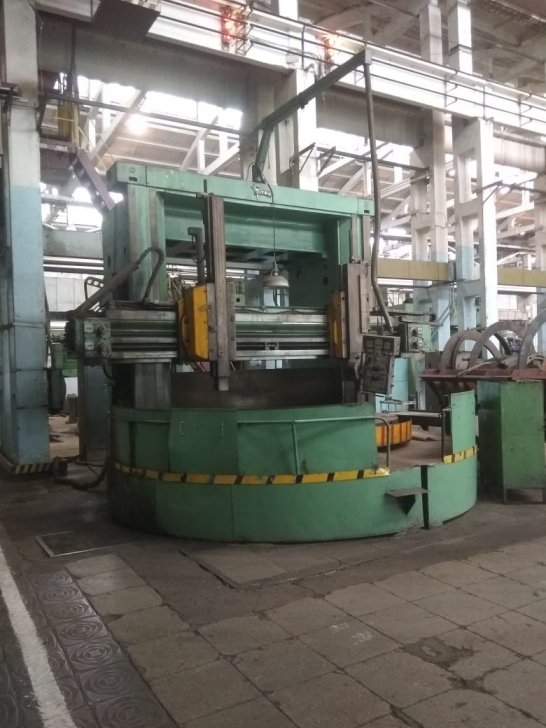

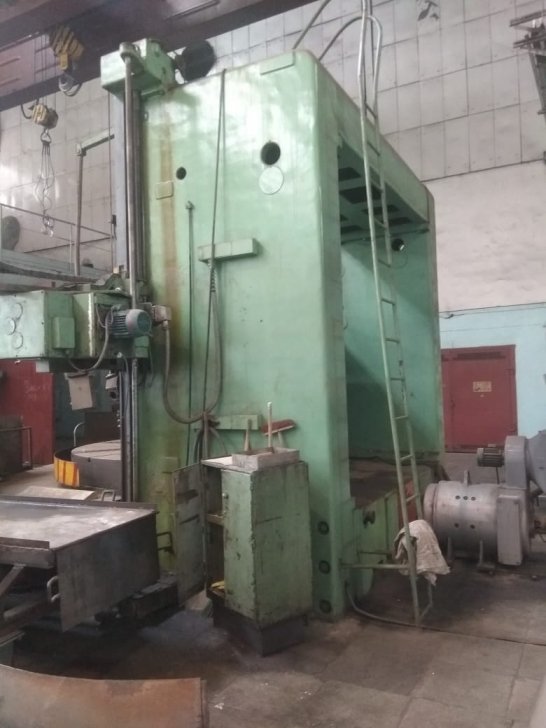

Vertical turning lathe TITAN SC-33 made in Romana.
Specifications:
Swing: 3300 mm
Max. work-piece height: 2300 mm
Max. work-piece weight: 18 tons
Table:
-Diameter: 3000 mm
-Speed range: 1.02-92 rpm
-Increased speed: 1.5-150 rpm
Cross-rail:
-Vertical travel: 2100 mm
-Rapid positioning feed: 400 mm/min
Vertical rail heads:
-Vertical ram travel: 760 mm
-Right rail head: 1000 mm
-No. of feed steps: 16
-Feed range: 0.05-5 mm/rev
-Rapid positioning feed: 2500 mm
-Head tilting angle: +/-35 deg
-Tool holder diameter: 80 mm
Horizontal side rail head:
-Horizontal travel: 1000 mm
-No. of feed steps: 16
-Feed range: 0.05-5 mm/rev
-Rapid positioning feed: 2500 mm
Slow feedbox:
-Table slow feeds: 1-360 deg/min
-Table slow feed motor torque: 45-55 Nm

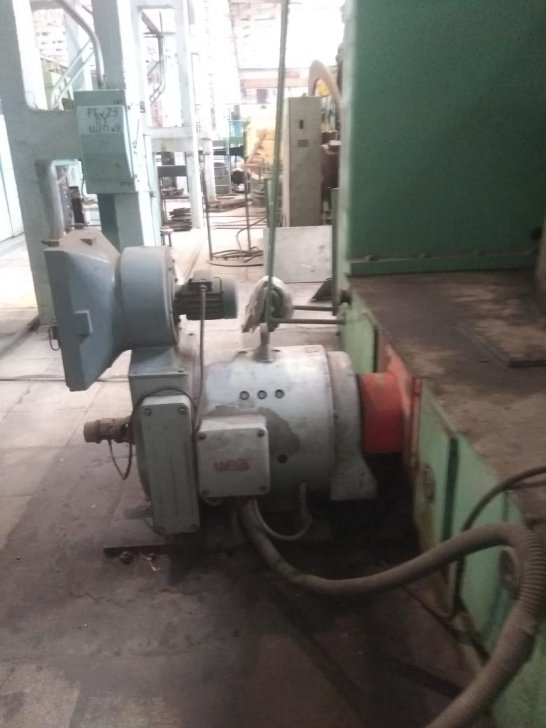

Main motor: 55 kW, D.C.
Machine dimensions:
-Length: 5600 mm
-Width: 5300 mm
-Height: 5400 mm
Weight:
48 tons
