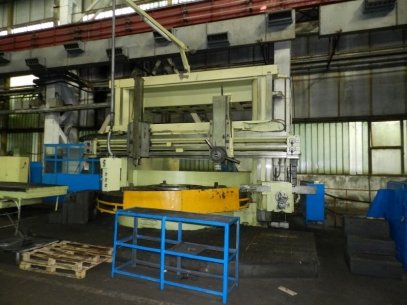

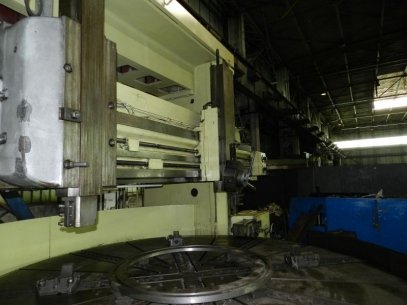

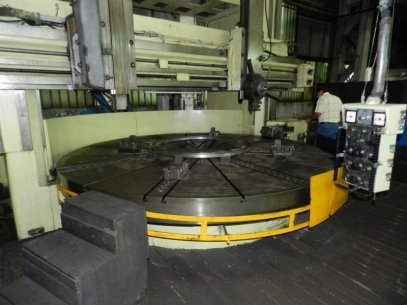

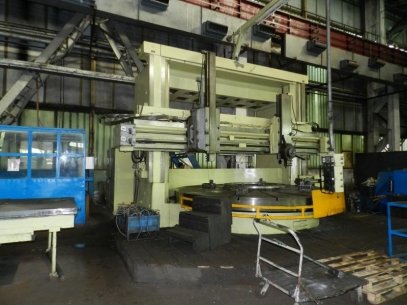

Vertical turning lathe TITAN SC-43 made in 1985. Type: double column. Machine was overhauled in 2005!
Specifications:
Swing: 4300 mm
Table diameter: 4000 mm
Max working height: 2060 mm
Table speed range: 1,02-92 rpm
Max work-piece weight: 18000 kg
Max moving of:
-Left vertical support from centre: 2400 mm
-Right vertical support from centre: 2400 mm
-Left vertical support slides: 1200 mm
-Right vertical support slides: 760 mm
Max inclination angle of vertical supports: +/- 35 degrees
Main motor: 55 kW
Energy requirement: 75 kW
