Manufacturer: TOS
Model: SKQ 20 NC
Condition: Good.
Specifications:
Manufacturer: TOS
Model: SKQ 20 NC
Condition: Good.
Year of manufacture: 1986
Technical details :
Max. turning diameter (front): 2200 mm
Max. workpiece height: 1250 mm
Max. workpiece weight: 10 000 kg

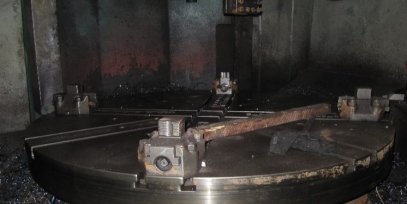

Clamping plate diameter: 2000 mm
Weight: 28 .5 T
Max. height from the mounting plate to the bottom edge: 1455 mm
Max. stroke crosshead: 800 mm
Max. ram stroke: 1000 mm
Machine height: 5520 mm
The width and depth of the machine: 4550 x 3440 mm
