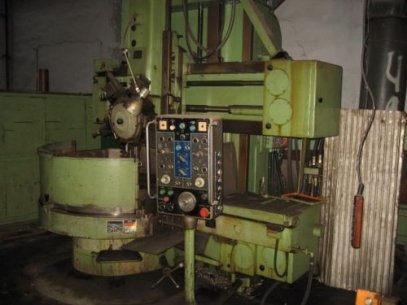

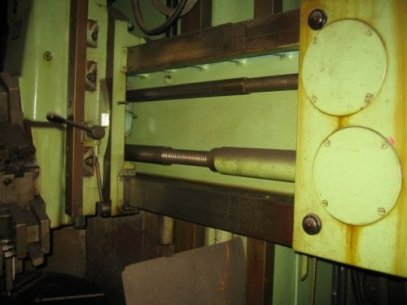

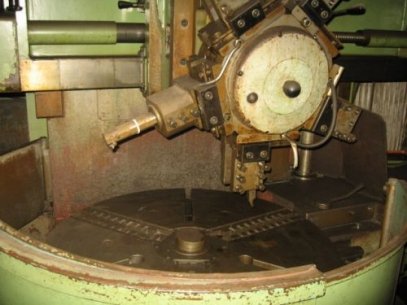

Vertical turning lathe TOS SKJ 10A NC made in 1977.
Specifications:
Swing: 1150 mm
Table diameter: 1050 mm
Table speed range per 1 min: 2.5-300
Circle diameter: 1200 mm
Turning diameter with side support: 1000 mm
Max work-piece height: 900 mm
Max work-piece weight: 3000 kg
Max stroke: 750 mm
Rapid traverse: 1800 mm/min
Rotational speed:
-Of main drive: 100-2.400 rot/min
-Stage I: 2.5-60 rot/min
-Stage II: 6-144 rot/min
-Stage III: 12.5-300 rot/min
Main motor power: 3-30 kW
