Max. work-piece diameter over the bed: 6300 mm
External work-piece diameter:
-Max.: 6300 mm
-Min.: 0 mm
Internal work-piece diameter:
-Max.: 6300 mm
-Min.: 420 mm
Max. work-piece height: 2500 mm
Max. boring depth: 1700 mm
Max. distance between faceplate and lower edge of toolholder: 2530 mm
Max. distance between faceplate and lower edge of cross traverse: 2830 mm
Min. distance between faceplate center and side support: 2000 mm
Max. work-piece weight: 50000 kg
Vertical rapid strokes:
-Cross traverse: 500 mm/min
-Support on traverse: 960 mm/min
-Side support: 940 mm/min
Horizontal rapid strokes:
-Support on traverse: 960 mm/min
-Side support: 940 mm/min

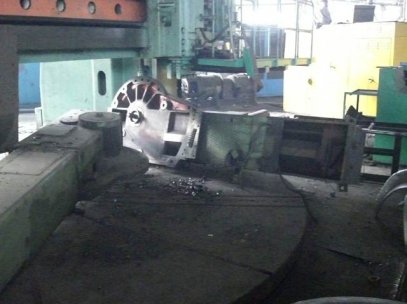

Faceplate diameter: 5300 mm
Number of T-slots: 16
Faceplate rotation:
-Number of steps: 4
-Stepless adjustment: 0,35-14 rpm
Feed of tool:
-Number of steps: 16
-Vertical: 0,063-11,2 mm/rev
-Horizontal: 0,063-11,2 mm/rev
Total power requirement: 145 kW
