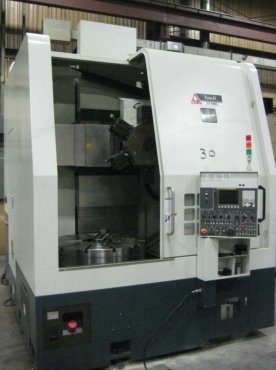

year 2010
Field Work
Max. rotating ...................................... mm 1000
Max. Swing .................................... 900 mm
Maximum height 700 mm turning length .................................
Maximum permissible load on the table ...................... 3000 Kg
spindle control
Spindle nose ....................................... ASA - A2 11 "
........................ 330 mm internal diameter bearing
Motor power ................................................ . 22 kW / 18.5
Spindle speed ranges .......................................... No 2
Spindle speeds ............................................. rev / min 20-600
Constant torque (low range) from ........ rev / min 18
Constant torque (high range) from ............ r / min 108
Max torque available ..................................... 11,840 Nm
Cross slide
"Z" axis vertical carriage
Max stroke ................................................ ........ 850 mm
Max. Fast forward ............................. m / min 20
Motor power ................................................ 4 kw
"X" axis transverse wagon
Max stroke ................................................ ........ mm -50 + 750
Max. Fast forward ............................. m / min 12
Motor power ................................................ 4 kw
tool turret
Turret stations ................................................ . n °. 6
Attack tools ................................................ Directed ........
Dimensions ................................. toolholder shank 32 x 32
Size .......................................... mm boring bar? 50
Standard equipment locking
3-jaw chuck diam. 610 mm (24 ") for the supply
You Ji, complete with:
flange and threaded connection
a series of soft jaws and one of the temperate ....... n. 1
Standard equipment Tool holder blocks
Blocks Tool multipurpose tool for locking rod
or boring bar ................................................ No ............. 6
hydraulics
Capacity control ........................................... 40 Liters
Lubrication system
Fuel tank capacity 12 liters ...........................................
Coolant system
Tank capacity ................................................ 300 liters
installed power
Total installed power Kw .................................... 60
Dimensions and weights
Max. .................................................. ... 4,300 mm
Dimensions ground max ....................................... 3,000 mm x 3,400
Machine weight ................................................ ... 15,000 kg
Total installed power .................................... 60 KVA
Unit FANUC 0 i TC
Spindle motor, axis motors and drives supply Fanuc
• Motor spindle and axis motors AC supply (Brushless)
• Microprocessor / multiprocessor 64-bit
• Increase minimum programmable 0.001 mm.
• Increase the minimum commanded by CN 0.001 mm.
• Tool offsets 64 pairs
• User memory available to 480 Kb (1280 m)
• Video Color 10.4 "LCD
• Electronic handwheel for manual axis movement
• RS 232 interface with external socket
• Memory card reader placed near the video with protective flap
Programming functions and use:
• Programming in inches (G20) or in millimeters (G21)
• Rapid positioning axes (G00)
• Linear interpolation (G01)
• Circular interpolation and helical (G02, G03)
• Stop (G04), when specifying a stop,
• Programming in mm / min or mm / rev (G98, G99)
• Constant surface speed (G96 m / min) or fixed speed (G97 rpm)
• Canned cycles of turning on external / internal diameter (G90), threading cycle (G92), facing cycle (G94)
• Drilling canned cycles (G80-G89)
• Automatic tool radius compensation (G40, G41, G42)
