YU SHI, VL 1200 ATC, VERTICAL TURNING, LATHES

Condition:Used
Category:LATHES
Type:VERTICAL TURNING
Manufacturer:YU SHI
Model:VL 1200 ATC
YOM:2008
Location:Netherlands, BABBERICH
Price:On request
Stock No:7222
Control:CNC
ID:AS29364

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

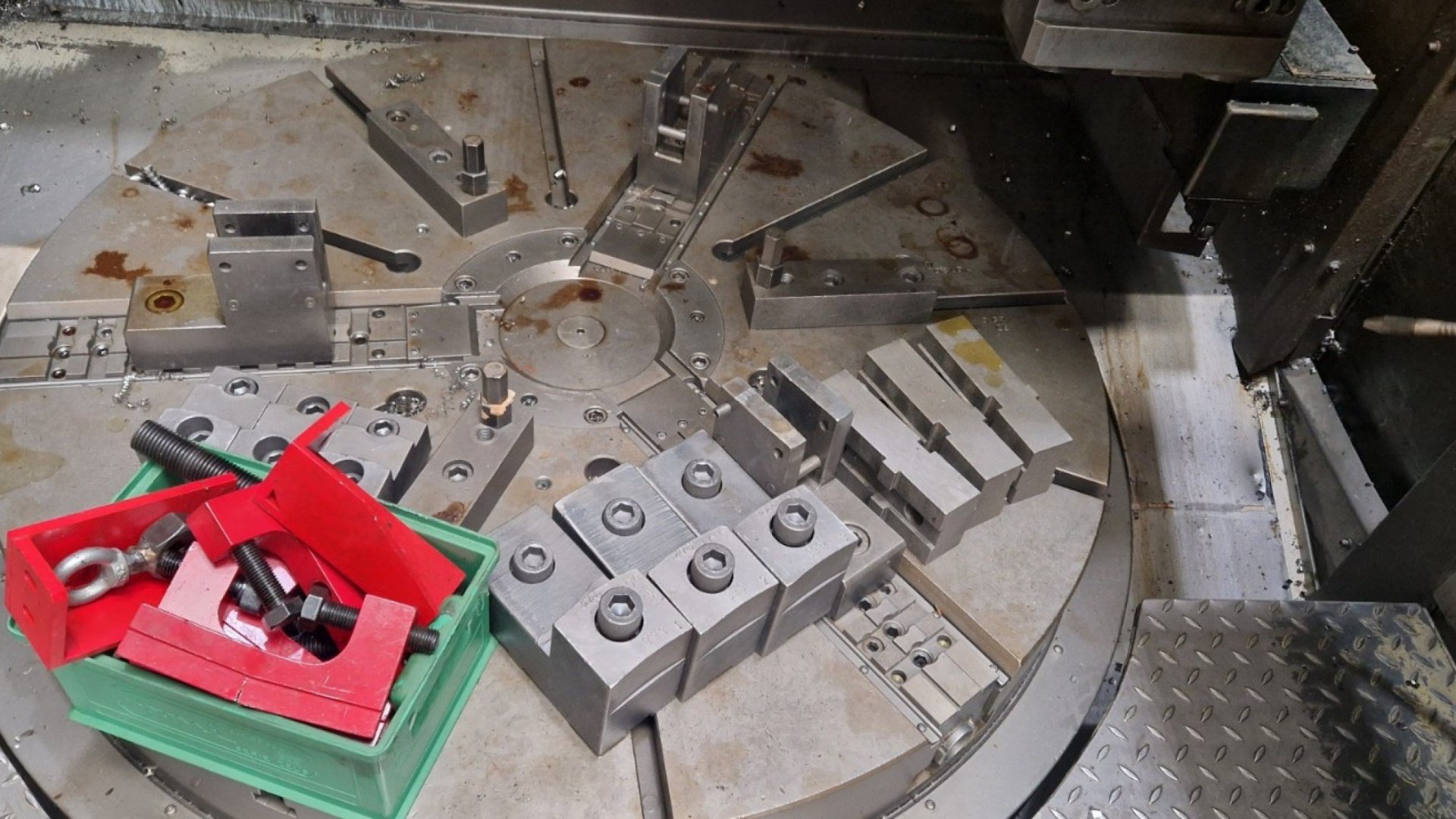

SMW-Autoblock 3 chuck 1250 N70 3 GR

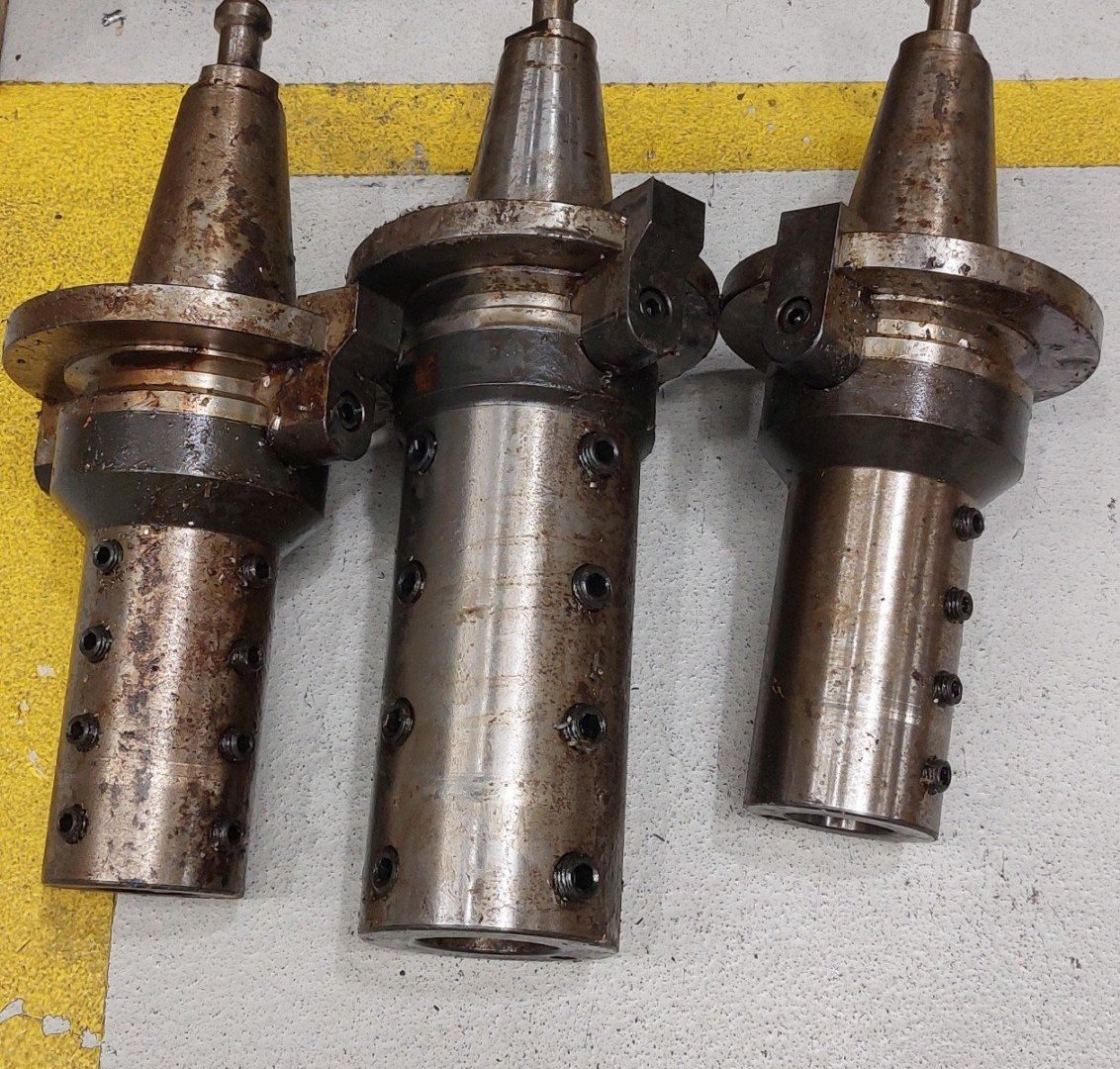

Bt-50 Turning holder CAPTO Left
Bt-50 Turning holder CAPTO Right
Bt-50 Boring holder SHAFT

Auto lubrication system
Dual speed ( 2 steps) gear box
Automatic balancing xcompensation system
ASTOS Chip conveyor with coolan

Max. turning Ø: 1600mm
Table Ø: 1250mm
Horizontal movement support:900mm
Stroke ram left: 800mm
ATC / revolver: 16
Speeds / ranges: 300Rpm
Power: 45kW
Maximum turning height: 1350mm
Vertical movement support: 800mm
Length: 4700mm
Width: 5800mm
Height: 5500mm
Weight: 32000kg

Specifications:

SMW-Autoblock 3 chuck 1250 N70 3 GR
Bt-50 Turning holder CAPTO Left
Bt-50 Turning holder CAPTO Right
Bt-50 Boring holder SHAFT

Auto lubrication system
Dual speed ( 2 steps) gear box
Automatic balancing xcompensation system
ASTOS Chip conveyor with coolan

Max. turning Ø: 1600mm
Table Ø: 1250mm
Horizontal movement support:900mm
Stroke ram left: 800mm
ATC / revolver: 16
Speeds / ranges: 300Rpm
Power: 45kW
Maximum turning height: 1350mm
Vertical movement support: 800mm
Length: 4700mm
Width: 5800mm
Height: 5500mm
Weight: 32000kg

Dealer name:

Mach4Metal Netherlands, Babberich
