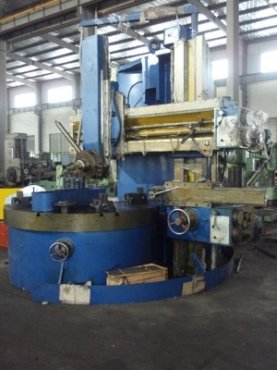

SINGLE COLUMN VERTICAL TURRET LATHE
MAIN SPECIFICATION C5123
Year of production 2008
Max.turning diaof rail head 2300mm
Max.turning diaof side head 2000
Table dia. 2000mm
Max.height of workpiece1350mm
Max.weight of workpiece10T
Max.cutting force of rail head2500kg
Max.cutting force of side head2000kg
Max.torque of tableKN.m 3800kg/m
Range of table speeds(16steps)2.5-80 r/min
Swivel of rail head±30°
Range of feed rates(12steps)0.8-86 mm/min
Ram hor. travel of rail head1265mm
Ram travel of rail head 800mm
Ram hor. travel of side head780mm
Vertical travel of side head900mm
Rapid traverse of tool heads1800mm/min
Power of main motorkW 22kW
Overall dimensions(L×W×H)3135×3070×3910mm
Weight of machine(Approx.)18 T
