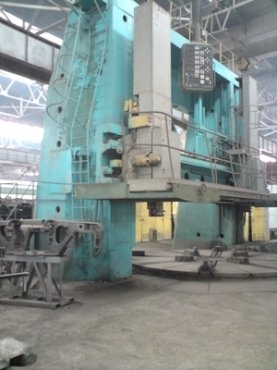

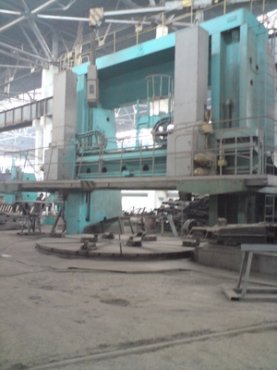

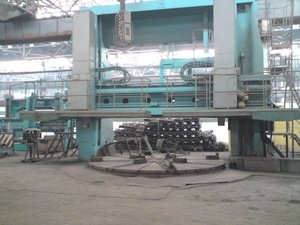

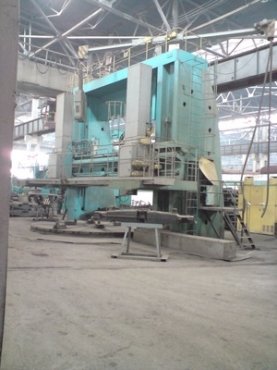

VTL Blansko SKD 50, new in 1981
Ball screws
Max. turing diameter by all rams:5000mm
Max. turning diameter by right ram on a cross beam:5300mm
Table:4770mm
Max. loading on table:100ton
Table RPM:
-I step:0.4-11
-II step:1.4-40
Number of jaw:8
Max. distance between tool holder and table:4050mm
Cross beam stroke:3600mm
Max. working height:4000mm
Ram vertical stroke:
-on a cross beam:3000mm
-side ram:1600mm
Rotation:
-vertical ram:+/-30degree
-side ram:+/-15degree
Ram surface:63x63mm
Dimension:14200(L)x10400(W)mm
Height above floor:8850mm
Weight:115ton
