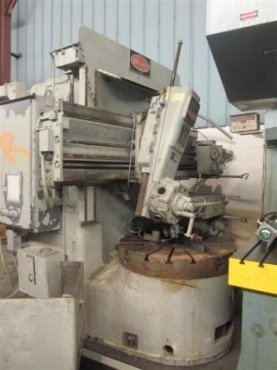

SERIAL ........................... 31713
MODEL ............................ 46" DYNATROL
YEAR ............................. 1965
TABLE DIAMETER ................... 46" 4-JAW CHUCK
MAXIMUM SWING .............. 49" W/SIDE HEAD IN WORKING POSITION
MAXIMUM SWING .................. 58" W/SIDE HEAD BELOW TABLE TOP
HEIGHT UNDER RAIL ................ 40"
RAIL ADJUSTMENT .................. 30"
TABLE SPEEDS ..................... (20) 6.83 TO 250 RPM
FEEDS: ........................... .001" TO .250" PER/REV
VERTICAL TRAVEL OF TURRET ........ 26" VERTICAL
TURRET TRAVEL ON RAIL ............ RIGHT 31" & LEFT 34-1/2"
TURRET SWIVEL .................... 30 DEGREES, RIGHT OR LEFT
SIDE HEAD TRAVELS ................ 38-3/4" VERTICAL & 23-3/4" HORIZONTAL
5-POSITION TURRET HEAD ON RAIL ... YES
4-POSITION TOOL POST ON SIDE HEAD. YES
RAPID TRAVERSE ALL DIRECTIONS .... YES
AUTOMATIC LUBRICATION ............ YES
MOTOR ............................ 30 HORSEPOWER
