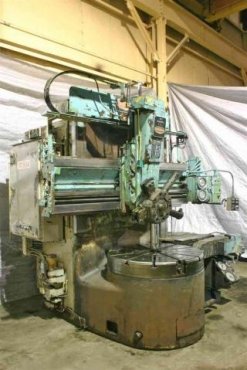

SERIAL .............................. 32583
MODEL ............................... 46 "DYNATROL"
MAXIMUM SWING ....................... 58"
DIAMETER OF 3-JAW CHUCK ............. 46"
TABLE SPEED ......................... (20) 9 TO 313 RPM
MAXIMUM UNDER RAIL .................. 38"
FEEDS ............................... .001 TO .250 IPM
VERTICAL TRAVEL OF RAIL ............. 40"
VERTICAL TRAVEL OF RAM .............. 26"
HORIZONTAL TRAVEL ON RAIL ........... 70"
TURRET HEAD ON CROSS RAIL ........... YES
SIDEHEAD ............................ YES
5 POSITION TURRET HEAD .............. YES
PENDANT CONTROL ..................... YES
+ CHAR(13) + CHAR(10) +
MOTOR ............................... 50 HORSEPOWER Zoom Image Print Images
