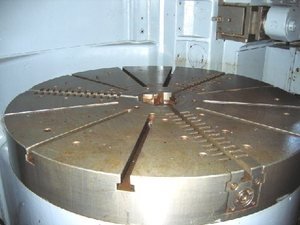

Diameter of 3-jaw chuck: 56"
Max Swing Inside Standard Splash Guard: 68"
Height under rail: 48" (Max.)
Table Speed: 8-300 RPM (20)
Variable Feed Range: .001" TO .250 IPR
Vertical Travel Of Turret Head: 30-3/4"
Vertical Travel Of Ram: 51"
Main Motor Drive: 75HP
Equipped With:
Power Feeds And Rapid Traverse to Both Turret And Side Heads, 4 Position Turret Head Swivelling 30 Deg, In Either Direction And With 30-3/4" Travel, Adjustable Rail, Side Head, 3 Jaw Combination (Independent) Power Chuck With Top Jaws, Position Power Indexing Turret Head, Chrome Ways, Hardened & Ground Cross Feed Screw, Coolant Pump & Pan, Pendant Control, 4 Way Tool Post On Side Head, 2 Sets Of Chuck Jaws, Extra Tool Holders And Boring Heads
