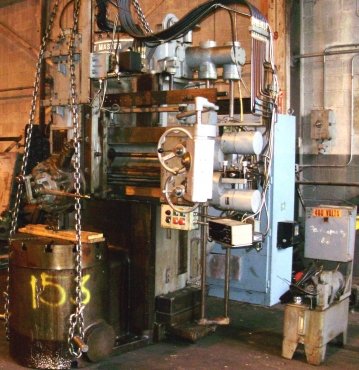

Equipped with 30 HP AC Motor Mounted on Outside Motor Mount Bracket
Specifications:
Max Swing 44"
Max Distance Table to Rail 25"
Cross Rail Vertical Travel 15"
Max Distance Table to Face of Turret 36 1/4"
Turret Head Vertical Travel 26"
Turret Head Toolpost Holes 2 3/4"
Table: Built in 3-jaw Chuck 30" Dia.
Speeds: Variable 6.2 – 225 RPM
Feeds: 16 in Geometric Ratio .0026 - .500 IPR
Heads: Five Sided Swiveling (30) Turret Head on Cross Rail
EQUIPPED WITH: 30 HP AC Motor Mounted on Outside Motor Mount Bracket
Pendant Control
Sony 2 Axis DRO
Automatic Lubrication

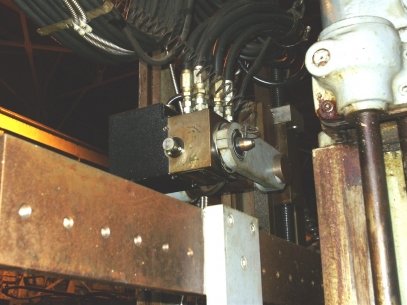

Scanomatic Tracer
OPTIONAL EQUIPMENT: Subject to availability at extra cost
Threading, Drum Scoring and Angle Turning Attach
4-Jaw Chuck
