SPECIFICATIONS:
CAPACITY:
Maximum swing 58"
Maximum height under rail 40"

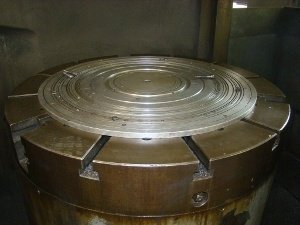

Diamter of table 46"
Vertical travel of cross rail 28"
Max height under turret face 50-3/8"
Vertical travel of turret head 26"
Turret head toolpost holes 2-3/4"
Speed--number 20
--range 9 to 313 rpm
Feeds--number infinitely variable
--range .001 to .250 ipr

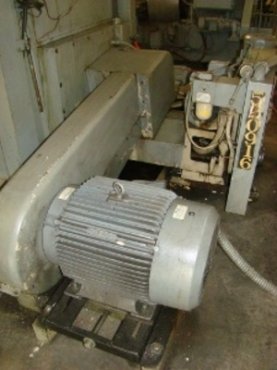

Main motor 50 HP
Rail elevating motor 5 HP
Dimensions (L x W x H) 135" x 107" x 163"
Weight, approx. 37,300 lbs.
EQUIPPED WITH:
Hand wheels for turret movements

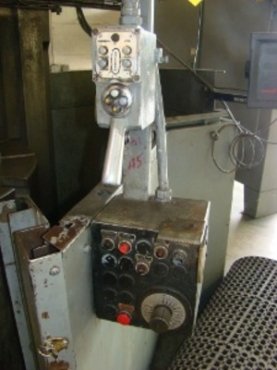

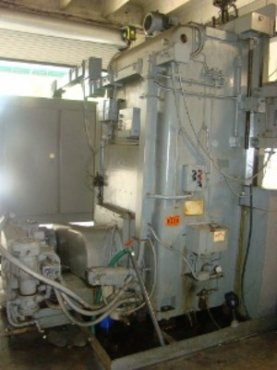

Hydraulic power pack, Pistol grip style pendant control
Hardened and ground chrome strips on cross rail adn turret swivel

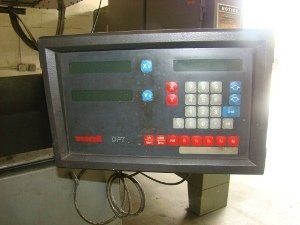

Remove feed works control, Newall digital readout system,
Power indexing turret head, Pedant controlled automatic lubrication
Compact unified remote control pendant,
Variable rapid traverse to maximum 9 feet per minute
