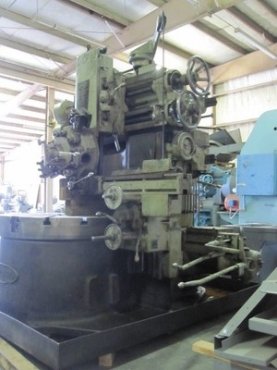

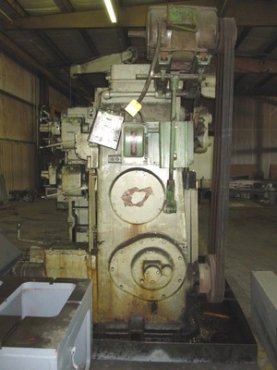

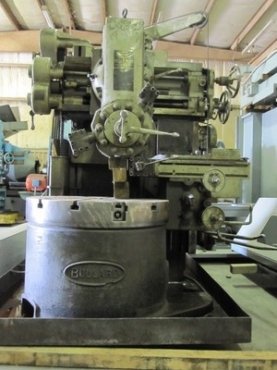

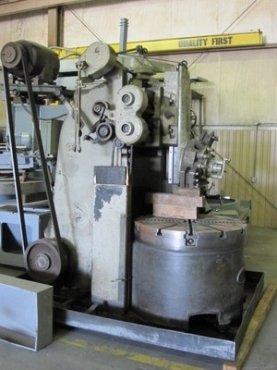

Table size-42"; 4 Jaw chuck, Swing with side head above table- 45". Swing with side head below table - 46". Height under rail - 36". Cross rail travel - 28". Table speed - 10 to 70 RPM. Feeds - .011 to .500"IPR. Main motor - 15HP 220/440. Turret head travel - (L to R) - 28". Turret head swivel - 45 degrees. Turret head travel (up/down) - 27". 6 sided turret head. Power elevation. Rapid traverse. 4 way tool post on side head.
Swing over bed............................................... 40"
Swing over cross slide................................... 33 1/2"
Distance between centers.............................171"
Swing in gap................................................... 59"
Length of gap.................................................. 17.8"
Spindle speeds (variable, 3 ranges)............ 50 to 550 rpm
10 to 260 rpm
1.5 to 50 rpm
Feeds (70) Longitudinal ................................ .0007 to .070 ipr
(70) Cross........................................... .0005 to .050 ipr
Threads (90) Inch............................................ 1/4 to 112
(80) Metric........................................ 0.5 to 112
Power Top Slide Travel................................. 16"
Hole thru spindle............................................. 6" dia.
Spindle Mounting............................................ A2-15
Tailstock taper................................................ 6 Morse
Spindle Horsepower...................................... 30
Equipped With:
(1) Steady Rest "turn through" 1" to 10" dia range
(1) Steady Rest, (full enclosed) 1" to 12" dia range
36" Buck 4 jaw chuck, front
18" 4 jaw chuck, rear
Power feed to Top Slide (compound)
Rapid Traverse to Carriage and Cross Slide
3 Way Bed allows Carriage to pass by Tailstock
Inch/Metric threading
Tailstock, 2 speed, 8:1 ratio
Positive thread stop
Chip and coolant trough
Chuck guards
Manuals
