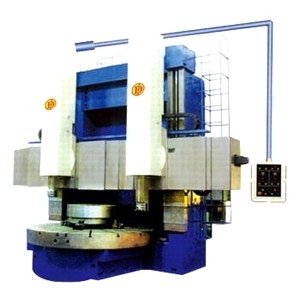

this vertical lathe is universal machine or digital display machine,it can finish internal and external cylindrical surface,

name unit CQ5240D*H/W
max.machining dia of workpiece mm 4000
dia of table mm 2250/2830/3150
max. height of workpiece mm 1600/2000/2500/3150
max. weight of workpiece kg 10000/20000/32000
speed range of table r/min 2-63
speed steps of table step 16
max. torque of table N.m 63000
max.cutting force of toolhead right N 35000
left N 28000
max.travel of vertical toolhead right pentagonal turret horizontal mm 2150
vertical mm 1000/1250/1400
pentagonal turret horizontal mm 2150
vertical mm 1000/1250/1400/1600
left pentagonal turret horizontal mm 2150
vertical mm 1000/1250/1400/1600
feed range of vertical tool head mm/min 0.2-145(18step)
rapid traverse of toolhead mm/min 1550
elevation travel of cross rail mm 1250/1650/2150/2800
elevation speed of cross rail mm/min 350
swivelling angle of tool head ° ±30°
section size of tool bar(W)H) mm 40*50
power of main motor kw 55
overall dimensions of machine tool(L*W*H) mm 6780*5200*4870
weight of machine(approx.) kg 37000/39000/41000
