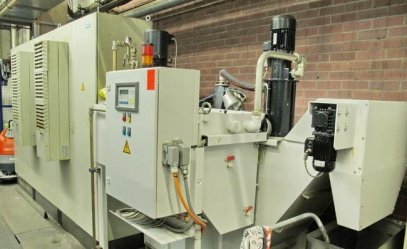

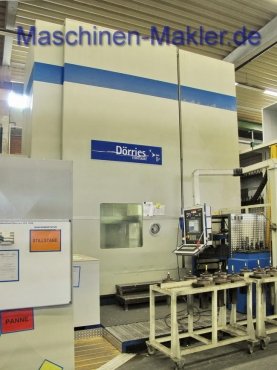

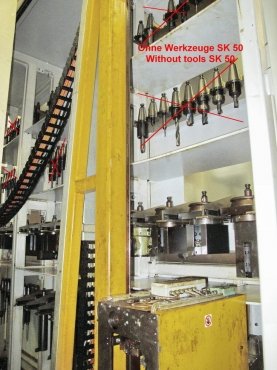

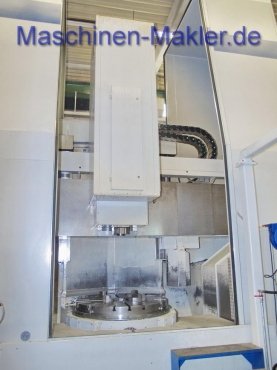

Overtaken DOERRIES CNC turning and milling center CONTUMAT VCE 100 S Machine in 2003 by DOERRIES completely. Drives, controls, bearings, spindles, and much more, from scratch. Make: DOERRIES Type: VCE 100 S Year: 1985 Retrofit like new home in DOERRIES: 2003! Control: Siemens SINUMERIK 840D faceplate: 1000 mm Swing: 1600 mm working height max. : 1.135 mm faceplate - Qürbalken max: 1.305 mm Maximum workpiece weight: 6,000 kg path Z axis / stem: 1,000 mm path Z1 axis / Qürbalken: 800 mm travel X axis / cross slide: 1,900 mm (+ - 950 mm) rotating C axis / Faceplate : 360,000 power chucks: 82 kW Speed range: 7.1 - 200, 284, - 800 Udr. / min. (2 steps) Spindle power: 25 kW spindle taper: SK 50 Tool Changer 76 tool stations included: - vertical milling - Coolant system KNOLL - RENISHAW Werkzeugmessystem - etc.
