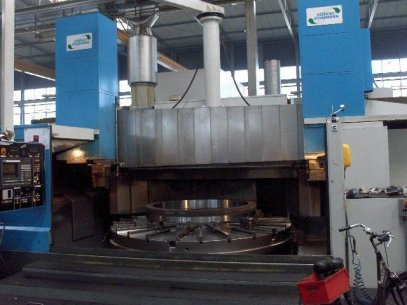

manufacturer DOERRIES
type VCE 3000/280
built 1993

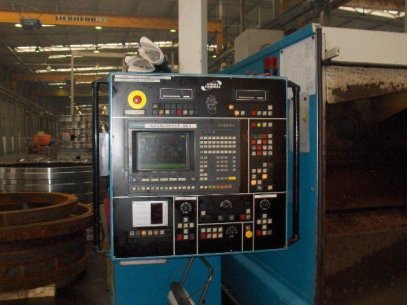

control SINUMERIK 880


6-jaw-power-chuck Ø 2.800 mm
swing diam. 3.000 mm

main spindle power 169 kW
Faceplate speed 125 rpm
gear – steps 2
max. torque 86.000 Nm

feed-rate X - plus Z – Axis 0,1 – 3.000 mm/min
0,01 – 50 mm/min-1
rapid feed 1 – 8.000 mm/min

ram stroke (Z - + W – Axis) 700 mm
movement X - + U – Axis 1.825 mm
min. distance between both RAM´s 500 mm
max. distance between faceplate an tool holder 630 mm
max. work piece – high 600 mm
max. work piece – weight 25.000 kg

space required 15,7 x 7,0 x 4,1 m


Equipment:
Machine with 2 turning – supports, 2 tool – Changer, 2 chip – conveyors, fixed cross rail.

-
