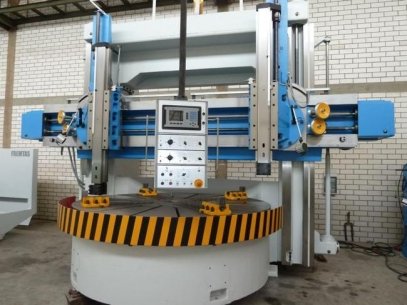

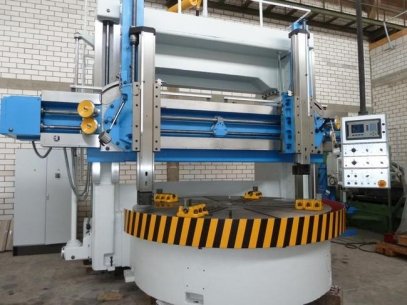

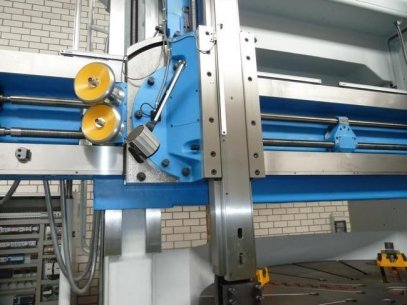

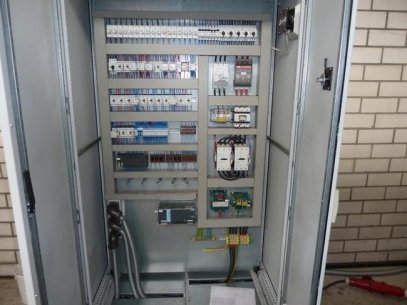

Machine run due to low orders only about 3 months, LIKE NEW! ready for immediate use, under power-loss geometry to DIN8609! Warranty 12 months for all damage control: conventional / Siemens PLC Planscheibensteürung 4-axis DRO Fa.ACU-RITE (Heidenhain) complete electrical equipment 230/400V, 50Hz, German-made, CE standard Technical Specifications: Maximum workpiece dimensions: - diameter mm 3200 - height 1600 mm Max workpiece weight kg 16000 face plate diameter mm 2800 Maximum stroke length - horizontal mm 1720 - perpendicular min mm 1200 levels the number of faceplate turning steps 18 faceplate speeds (PLC Siemens PLC) U /. Support levels from 1.6 to 63 working feed speed of 18 min, the number Qürbalkenverstellung mm / min. Min 360 Max Support Eilverstellungsgeschwindigkeit mm / min. 2000 Maximum torque faceplate kN / m 67 Main motor kW 55 Dimensions (LxWxH) 5490x7075x5100 mm weight kg 43 000
