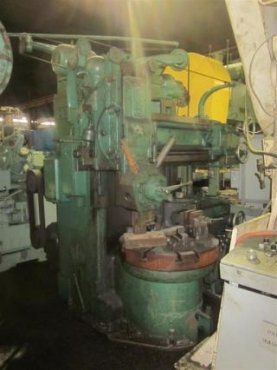

SERIAL ............................ 1695
DIAMETER OF TABLE ................. 36"
MAXIMUM SWING ..................... 40"
CHUCK ............................. 36" 4 JAW
MAXIMUM UNDER RAIL ................ 30"
TABLE SPEEDS ...................... (16) 8.2 TO 245 RPM
FEEDS ............................. (24) .0026 TO .500 IPM
TURRET RAIL HEAD AND SIDE HEAD .... YES
VERTICAL TRAVEL OF RAIL TURRET .... 27"
MAXIMUM UNDER TURRET FACE ......... 36"
TURRET HEAD SWIVEL ................ 30 DEGREES LEFT OR RIGHT
SIDE HEAD ......................... YES
HORIZONTAL TRAVEL OF SIDE HEAD .... 24"
VERTICAL TRAVEL OF SIDE HEAD ...... 23"
RAPID TRAVERSE .................... YES
PENDANT CONTROL ................... YES
MOTOR ............................. 20 HORSEPOWER
