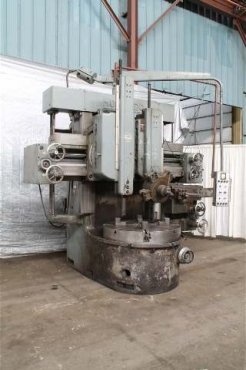

SERIAL ................................ 33103-1959
MODEL ................................. VK12
DIAMETER OF 4 JAW TABLE ............... 48"
MAXIMUM SWING WITH SIDE HEAD DOWN...... 56"
TABLE SPEEDS .......................... 8 TO 240 RPM
FEEDS ................................. .05 TO 10
2 RAIL HEADS .......................... LEFT RAM, RIGHT TURRET (5 POSITION)
1 SIDE HEAD ........................... YES
TRAVEL OF RAM HEAD .................... 36" VERTICAL 30" HORIZONTAL
TRAVEL OF TURRET HEAD ................. 36" VERTICAL 30" HORIZONTAL
TRAVEL OF SIDE HEAD ................... 30" VERTICAL 24" HORIZONTAL
MAXIMUM UNDER RAIL .................... 40"
VERTICAL TRAVEL OF RAIL ............... 30"
FLOOR TO TOP OF TABLE ................. 34"
BOTH RAIL HEADS SWIVEL 30 DEGREES ..... YES
RAPID TRAVERSE TO ALL HEADS ........... YES
RAPID TRAVERSE TO RAIL ................ YES
PENDANT CONTROL ....................... YES
