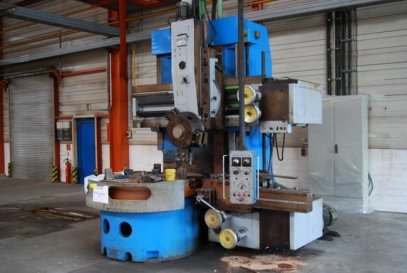

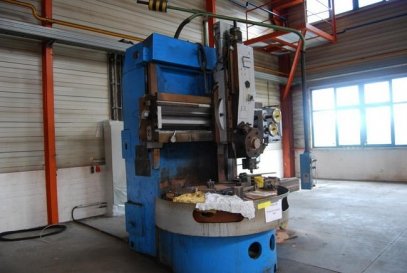

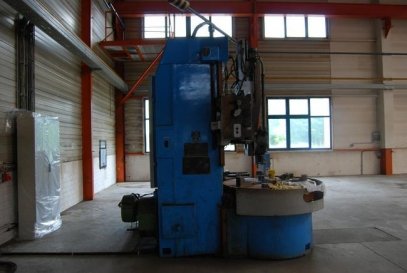

Machine Type : vertical turret lathe single column
Model : 1516
Manufacturer : SEDIN
Table diameter: 1400 mm
Max turning diameter: 1600 mm
Max workpiece height: 1000 mm
Max workpiece weight:
- when 4-63 rpm: 5000 kg
- when 200 rpm: 1000 kg
Max turning angle of the upper carriage: 45 degree
Max vertical travel of the lateral carriage: 1000 mm
Max slider travel of the lateral carriage: 630 mm
Max slider travel of the upper carraige: 700 mm
Table revolutions range: 18
Table ravolutions: 4 – 200 rpm
Carriage feeding number : 16
Carraige feeding range: 0.07 – 12.5 mm/rev
Main engine power: 30 kW
Installed power: 37 kW
Dimensions: 3190 x 3360 x 4100 mm
Netto weight: 19 200 kg
