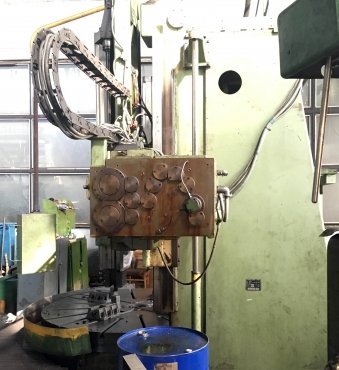

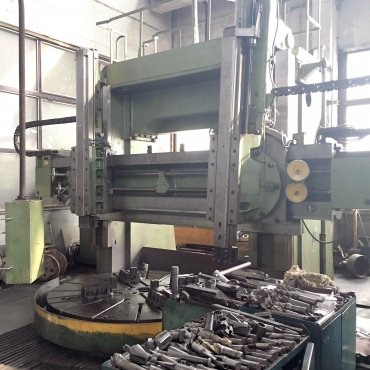

Vertical lathe model 1525
Manufacturer – SEDIN, STANKO
Turning diameter, mm (in) 2500 (99")

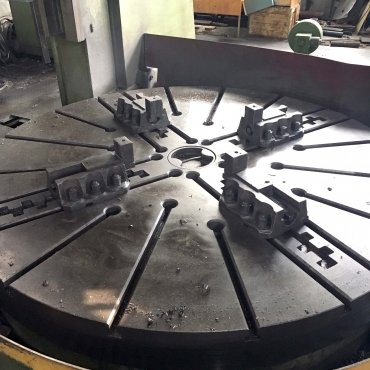

Faceplate diameter, mm (in) 2250 (88")
Turning height, mm (in) 1600 (63")
Workpiece weight, kg 13000

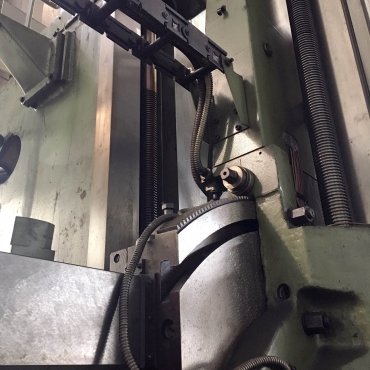

Vertical ram stroke, mm (in) 1200 (47.24")
Cutting force right slide, kN 41.7
Cutting force left slide, kN 32.9
Cutting force both supports, kN 65.7
Rapid travel (for supports), m/min 0.005-1.8

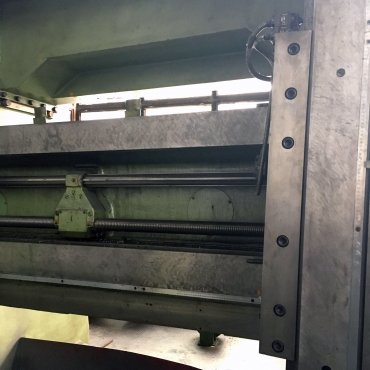

Rapid travel (for cross rail), m/min 0.36
Faceplate speed, RPM 1.6-110
Corner of supports turn, deg. + - 30
Tool size, mm (in) 50x50 (2x2")
Main drive power, kW 55
Machine weight, kg 35500
Specifications:
Vertical lathe model 1525 Machine is used for variety of turning and boring work:
- turning of cylindrical and conical surfaces;
- boring;
- facing;
- chamfering;
- cutoff;
- processing of parts with curved surface (jointly coordinated by two axes);
- threading - CNC option
The machine is used for processing of metal and non-metal materials with high precision and the constant cutting speed.
Given the ease and simplicity of the service machine has high resource efficiency.
