Purpose: Designed for rough and finish turning of very large parts of ferrous and nonferrous metals in terms of individual and mass production. The machine can produce turning internal and external cylindrical, conical, curved, shaped, end surfaces, milling, boring.
Specifications:
Accuracy class Н
Table diameter 10 000 mm
Table RPM 0.125-12.5
Maximum diameter of work piece 16 000 mm
Maximum height of work piece 5500 mm
Number of slides 2
Right ram (turning) vertical travel 3500 mm
Left ram(milling) vertical travel: 2500 mm
Milling spindle RPM 6.3-630
Milling spindle head diameter 220 mm ISO 50
Max angle of the slide caliper -/+30 deg.
Maximum weight of work piece 400 000 kg
Machine dimensions 26154х17514х19600
Machine weight 850 000 kg
Operating time and technical conditions:
The machine was commissioned in 1986. Do not run the exact mode of stopping the plan goals in the given coordinates (for drilling).
Intensively exploited in the period from 1988 to 1998. The total operating time of about 14,000 hours.

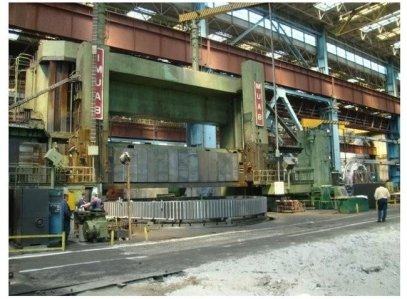

Right support machine is not operated since 1992 and shortage of electric and hydraulic parts. The mechanical part of the caliper is working. Machine is on a foundation, in a fully operational state.
Documentation: Card dimensions for the final test, shipping lists, instructions for programming, specification of electrical equipment on the machine, drawing a folder, control-assembly materials and tools, electrical circuits, the passport of the machine, cable magazine.
