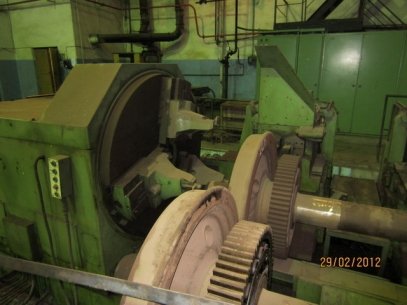

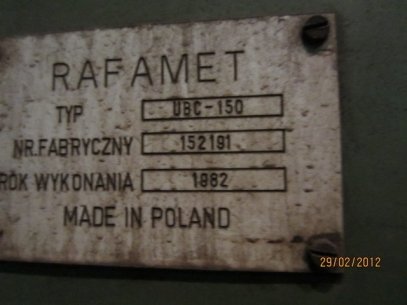

We can offer Railway lathe RAFAMET UBC 150
Machine condition like new, make only 10 pcs. wheel for testing.
Max working diameter: 700-1500 mm
Distance between railway wheels: 1435 mm
Regulating distance between railway wheels: 1524 or 1676 mm
Length of railway wheels sets: 1640-3000 mm
Jaws clamp diameter: 550-1350 mm
Max wheel width: 140 mm
Spindle turn range: 4
Spindle turn: 9, 13, 5-18, 27 rpm
Stepless feed speed range: 1,6-50 mm/min
Suppy voltage: 400 V
Total power requirement: 125 kW
Machine dimensions:
-Length: 8700 mm
-Width: 3600 mm
-Height: 3200 mm
Machine weight: 59200 kg
