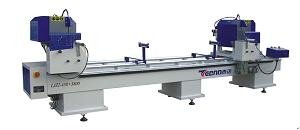

Introduction：
◎ Used for cutting aluminum and PVC at 45° 90°.
◎ The right head can be adjusted horizontally by the motor.
◎ Two heads work independently or together.
◎ Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
Specifications:
Technical Parameter：
Model LJZ2-450×3800
Input voltage 380V/50Hz
Input power 3.55Kw
Air pressure 0.4-0.6MPa
Air consumption 200L/min
Motor rotation speed 2800r/min
Cutting length 360-3800mm
Cutting width ≤120mm
Cutting height ≤200mm
Cutting angle 90° 45° -45°
Saw feeding speed 0-3m/min
Saw blade standard φ450×4×φ30×Z120
Overall dimension 4800×1300×1450mm
