CHIRON, FZ08, VERTICAL, MACHINERY CENTERS

Condition:Used
Category:MACHINERY CENTERS
Type:VERTICAL
Manufacturer:CHIRON
Model:FZ08
YOM:1998
Location:Netherlands, BABBERICH
Price:On request
Stock No:7652
Control:CNC
ID:AS29540

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

3-axis CNC machine (VMC)
CHIRON - FZ08W
MACH-ID 7652
Make: CHIRON
Type: FZ08W

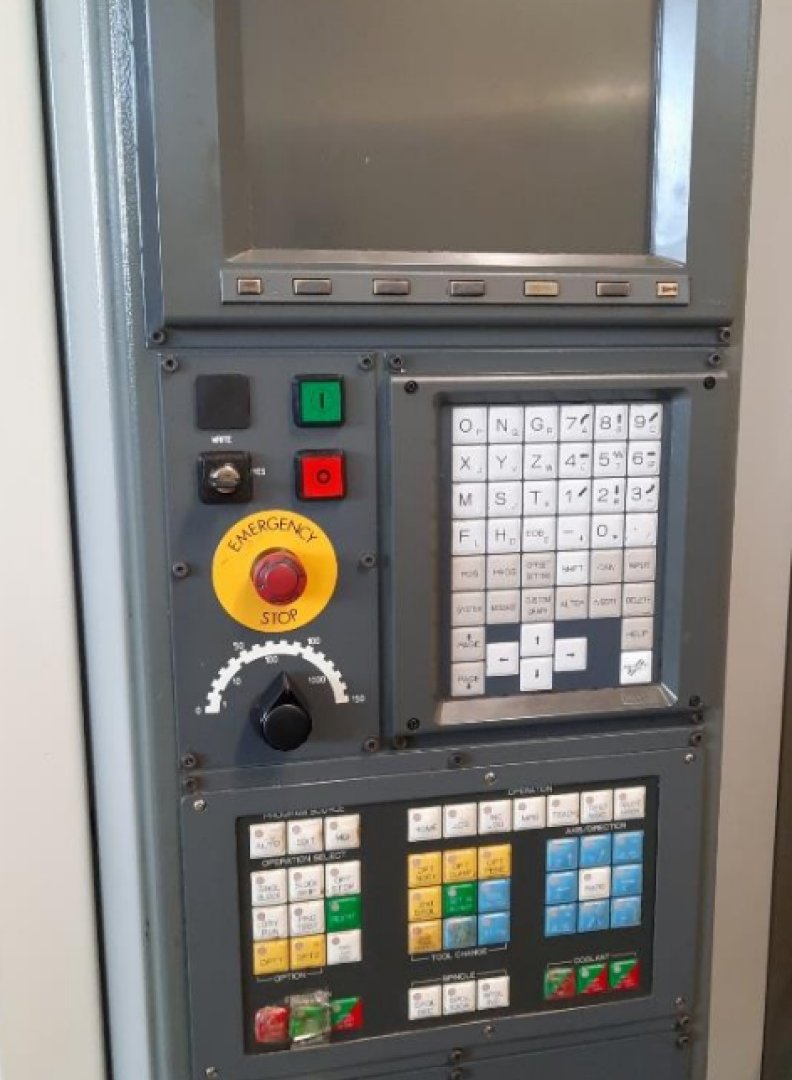

Control: Fanuc 21-M

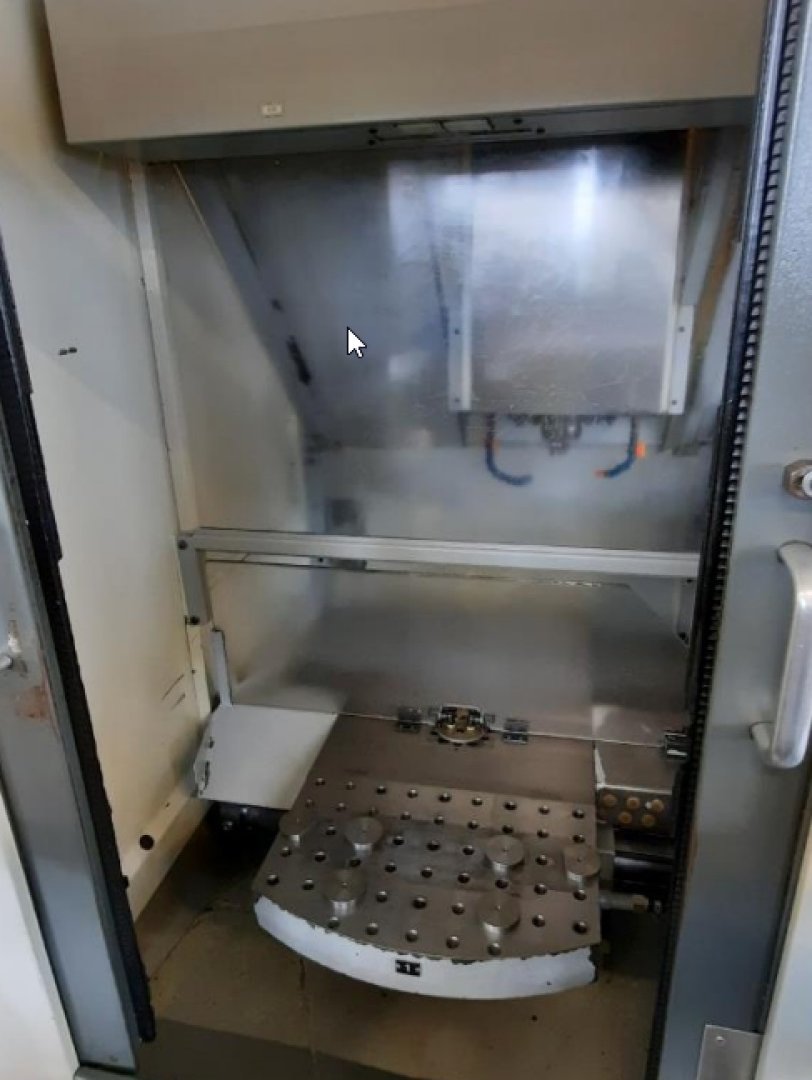

Year: 1998 Pallet changer 2 tables 450 x 300 x 75 Kg
Workpiece rotation station 180 Gr

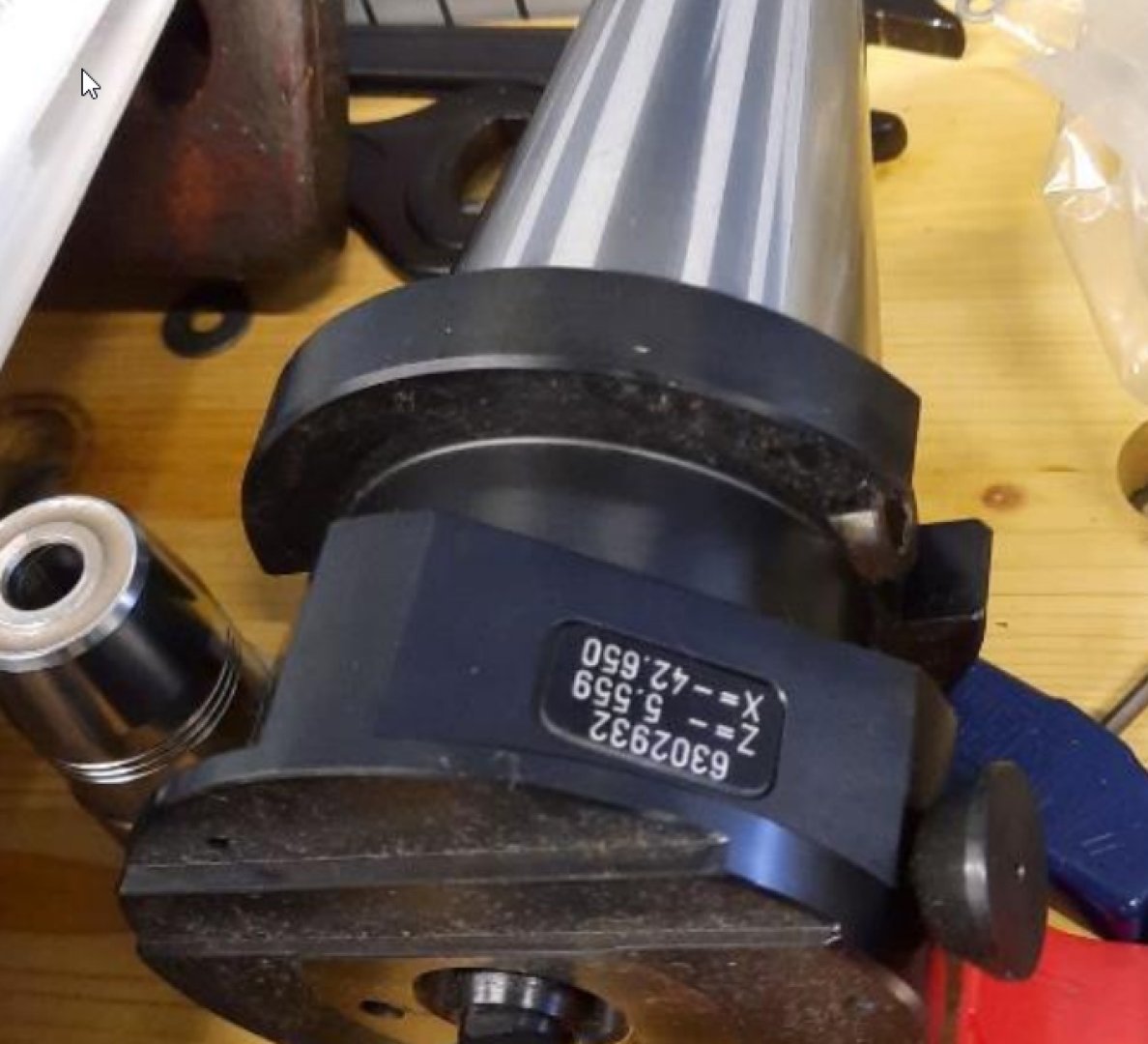

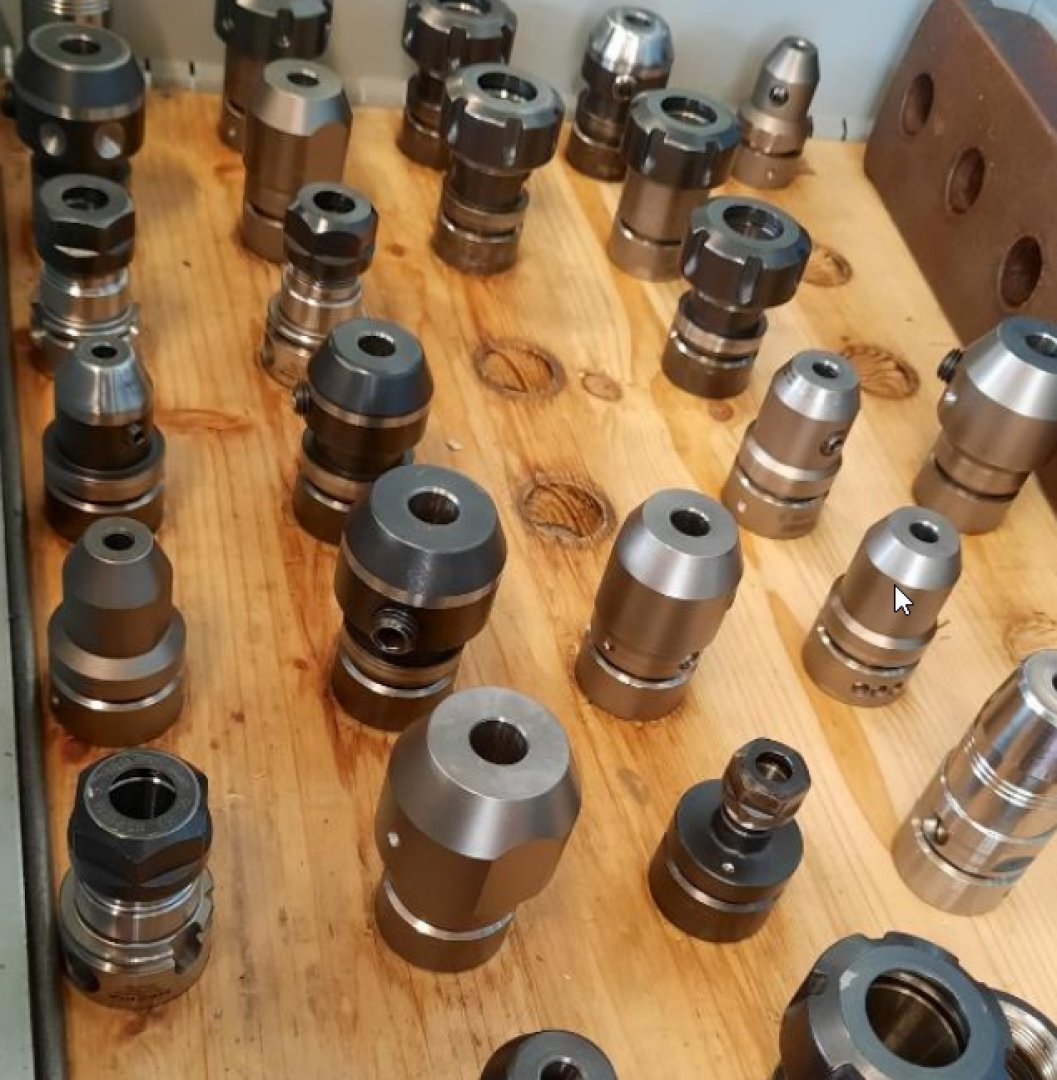

Large Tooling package HSK-32
Coolant system 100 Liter

X - Travel: 300mm
Y - Travel: 250mm
Z - Travel: 250mm
Table Length: 450mm
Table Width: 300mm
Table load: 75
Feed rate X-Axis: 40000mm/min.
Feed rate Y-Axis: 40000mm/min.
Feed rate Z-Axis: 60000mm/min.
Spindle Taper: HSK 32ISO/Bt/Mk
Power on spindle: 3,7kW
Speeds / ranges: 10500Rpm

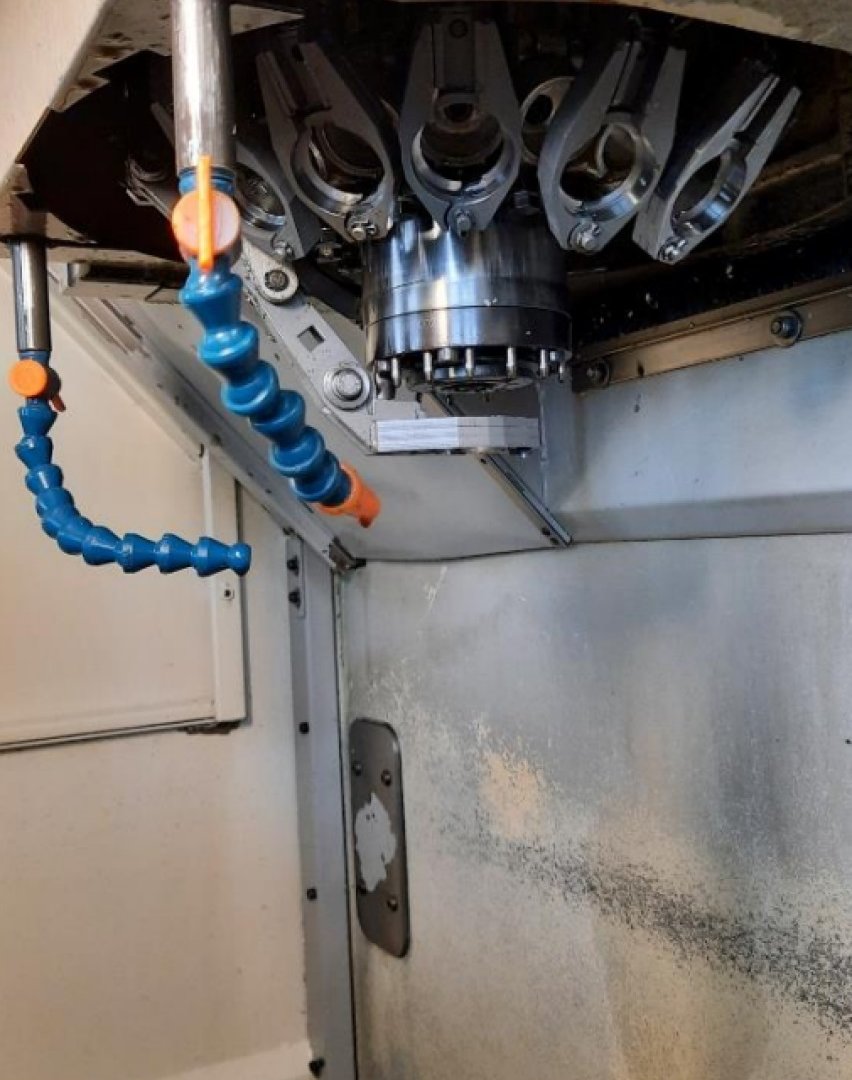

ATC / revolver: 12
Number of controlled axis:3
Length: 2400mm
Width: 2200mm
Height: 2300mm
Weight: 2200kg

Specifications:

3-axis CNC machine (VMC)
CHIRON - FZ08W
MACH-ID 7652
Make: CHIRON
Type: FZ08W
Control: Fanuc 21-M
Year: 1998 Pallet changer 2 tables 450 x 300 x 75 Kg
Workpiece rotation station 180 Gr
Large Tooling package HSK-32
Coolant system 100 Liter

X - Travel: 300mm
Y - Travel: 250mm
Z - Travel: 250mm
Table Length: 450mm
Table Width: 300mm
Table load: 75
Feed rate X-Axis: 40000mm/min.
Feed rate Y-Axis: 40000mm/min.
Feed rate Z-Axis: 60000mm/min.
Spindle Taper: HSK 32ISO/Bt/Mk
Power on spindle: 3,7kW
Speeds / ranges: 10500Rpm
ATC / revolver: 12
Number of controlled axis:3
Length: 2400mm
Width: 2200mm
Height: 2300mm
Weight: 2200kg

Dealer name:

Mach4Metal Netherlands, Babberich
