5-axis machining centre DMG MORI - DMU 50 VMC X 500 Y 450 Z 400 with B&C Axis 6448 = Mach4metal
Specifications:
5-axis machining centre DMG MORI - DMU 50 VMC X 500 Y 450 Z 400 with B&C Axis 6448 = Mach4metal
X – Travel 500 mm
Y – Travel450 mm
Z – Travel 400 mm
A – Axis- 5 to + 115 °
Table Length 630 mm
Table Width 500 mm
Table load 400 kg
Feed rate X-Axis 30.000 mm
Feed rate Y-Axis 30.000 mm
Feed rate Z-Axis 30.000 mm
Spindle Taper40 ISO/Bt/Mk
Speeds / ranges 14000 Rpm
ATC / revolver 30
Number of controlled axis 3 + 2
Chip conveyor
Coolant system

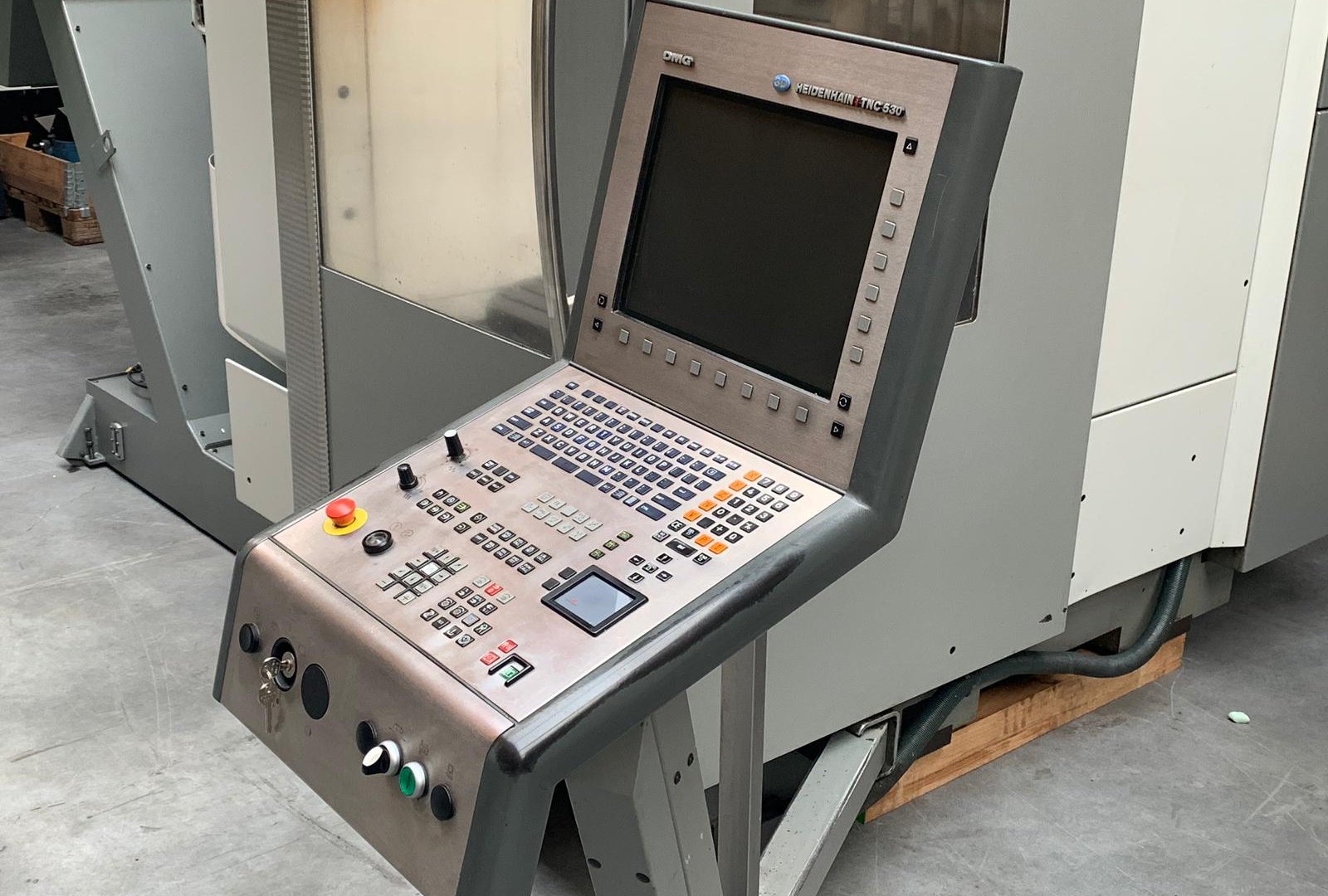

Control HeidenHain iTNC530
