Micromill, Challenger MM-430, VERTICAL, MACHINERY CENTERS

Condition:Used
Category:MACHINERY CENTERS
Type:VERTICAL
Manufacturer:Micromill
Model:Challenger MM-430
YOM:2011
Location:Netherlands, BABBERICH
Price:On request
Stock No:7522
Control:CNC
ID:AS29433

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

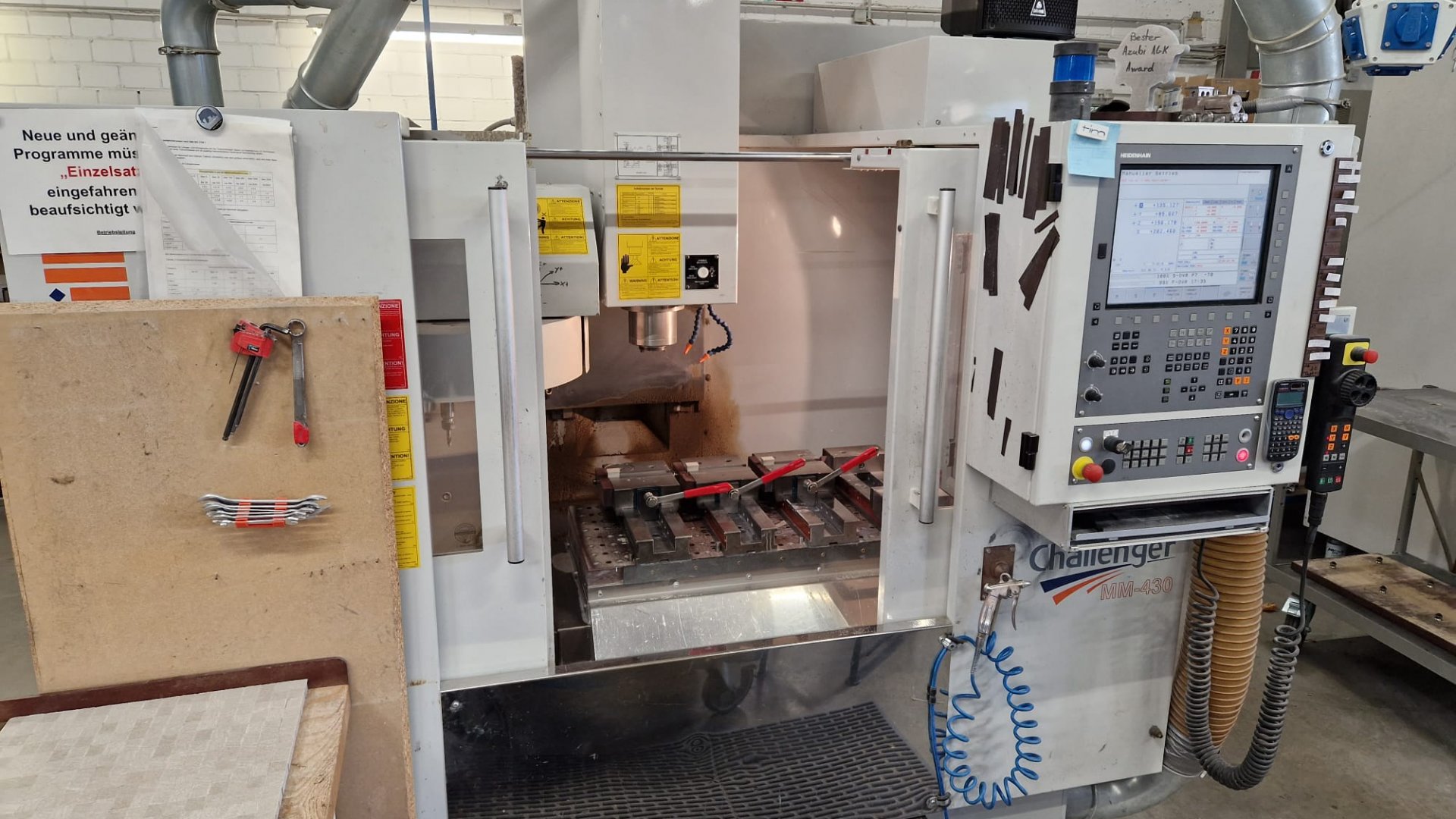

3-axis CNC machine (VMC)
MircoMill - Challenger MM-430
X - Travel: 760mm
Y - Travel: 430mm
Z - Travel: 390mm
Table Length: 900mm
Table Width: 410mm
Table load: 350
Feed rate X-Axis: 24000mm/min.
Feed rate Y-Axis: 24000mm/min.
Feed rate Z-Axis: 24000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 7.5kW
Speeds / ranges: 8000Rpm

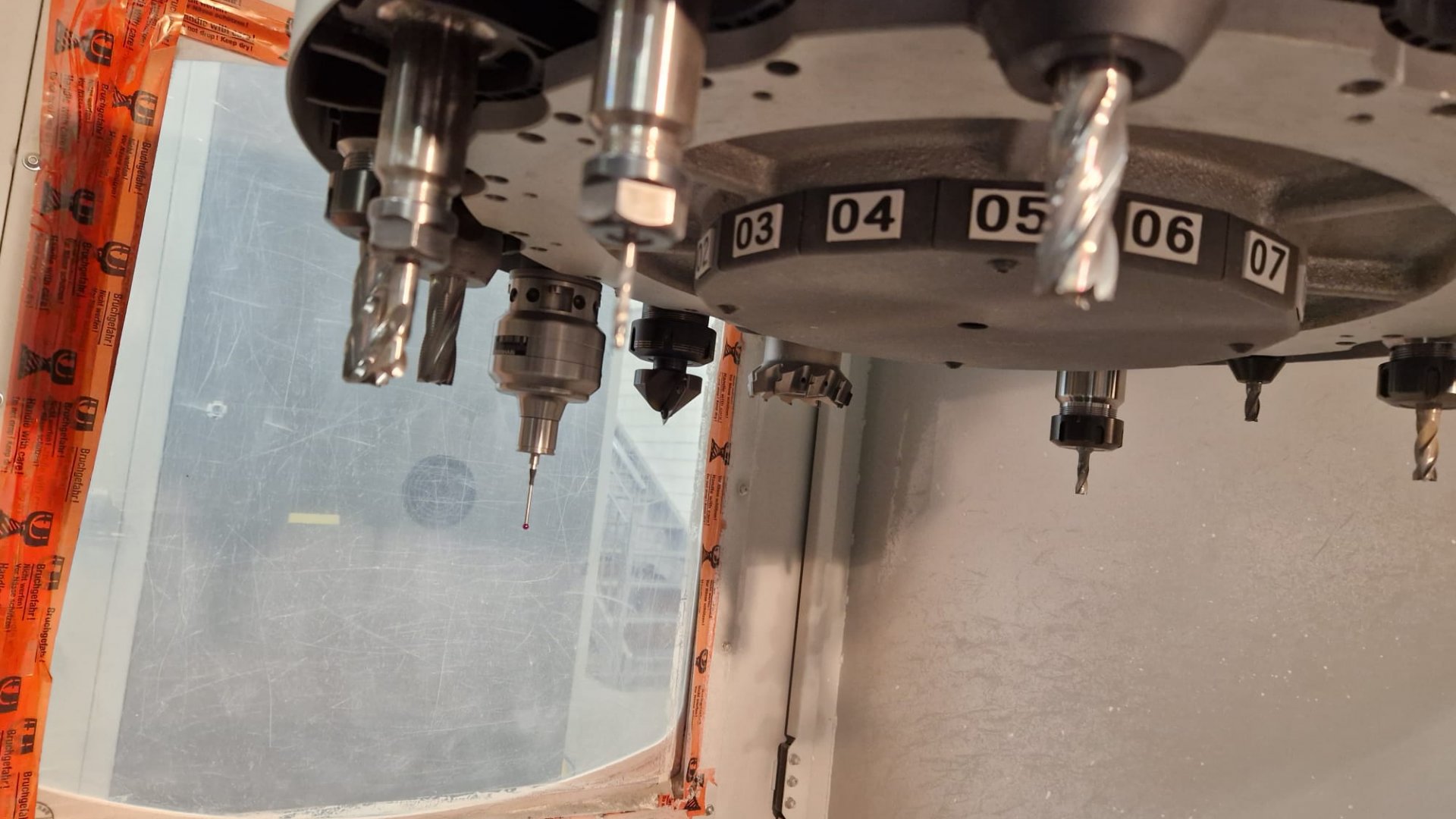

ATC / revolver: 24
Number of controlled axis:3
Length: 2200mm
Width: 2000mm
Height: 2400mm
Weight: 3700kg

Specifications:

3-axis CNC machine (VMC)
MircoMill - Challenger MM-430
X - Travel: 760mm
Y - Travel: 430mm
Z - Travel: 390mm
Table Length: 900mm
Table Width: 410mm
Table load: 350
Feed rate X-Axis: 24000mm/min.
Feed rate Y-Axis: 24000mm/min.
Feed rate Z-Axis: 24000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 7.5kW
Speeds / ranges: 8000Rpm
ATC / revolver: 24
Number of controlled axis:3
Length: 2200mm
Width: 2000mm
Height: 2400mm
Weight: 3700kg

Dealer name:

Mach4Metal Netherlands, Babberich
