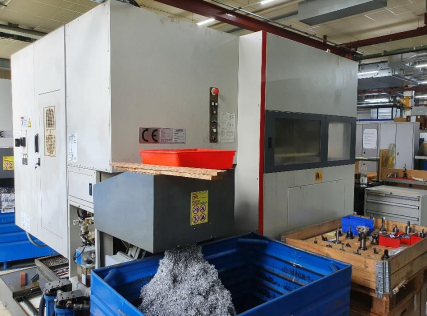

QUASER, MV184P, VERTICAL, MACHINERY CENTERS

Condition:Used
Category:MACHINERY CENTERS
Type:VERTICAL
Manufacturer:QUASER
Model:MV184P
YOM:2011
Location:Netherlands, BABBERICH
Price:On request
Stock No:7400
Control:CNC
ID:AS29393

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

3-axis CNC machine (VMC)
QUASER - MV184P X - Travel: 1020mm
Y - Travel: 610mm
Z - Travel: 610mm
Table Length: 1200mm
Table Width: 600mm
Table load: 1000
Feed rate X-Axis: 15000mm/min.
Feed rate Y-Axis: 15000mm/min.
Feed rate Z-Axis: 15000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 22kW
Speeds / ranges: 12000Rpm
ATC / revolver: 30
Coolant true spindle / Bar:20
Number of controlled axis:3
Chip conveyor: Yes
Coolantsystem: Yes
Length: 3000mm
Width: 2800mm
Height: 3200mm
Weight: 7400kg

Specifications:

3-axis CNC machine (VMC)
QUASER - MV184P X - Travel: 1020mm
Y - Travel: 610mm
Z - Travel: 610mm
Table Length: 1200mm
Table Width: 600mm
Table load: 1000
Feed rate X-Axis: 15000mm/min.
Feed rate Y-Axis: 15000mm/min.
Feed rate Z-Axis: 15000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 22kW
Speeds / ranges: 12000Rpm
ATC / revolver: 30
Coolant true spindle / Bar:20
Number of controlled axis:3
Chip conveyor: Yes
Coolantsystem: Yes
Length: 3000mm
Width: 2800mm
Height: 3200mm
Weight: 7400kg

Dealer name:

Mach4Metal Netherlands, Babberich
