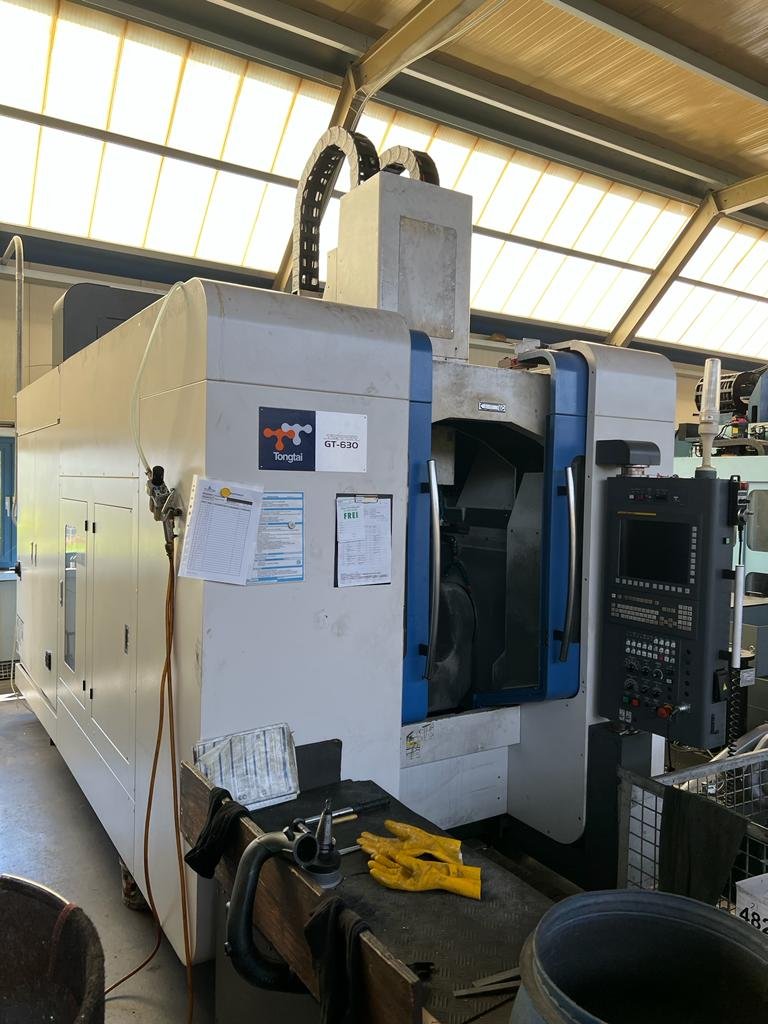

Tongtai, GT 630, VERTICAL, MACHINERY CENTERS

Condition:Used
Category:MACHINERY CENTERS
Type:VERTICAL
Manufacturer:Tongtai
Model:GT 630
YOM:2016
Location:Netherlands, BABBERICH
Price:On request
Stock No:7104

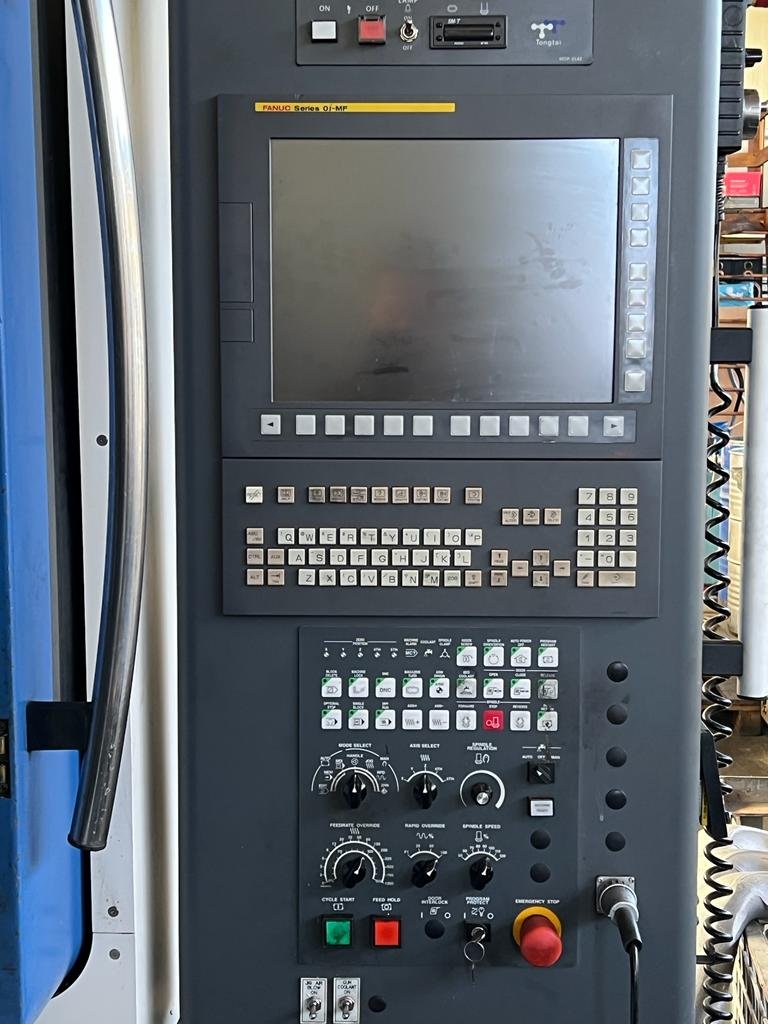

Control:CNC
ID:AS29321

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

X - Travel: 760mm
Y - Travel: 820mm
Z - Travel: 560mm
A - Axis: + 30 to - 120 Gr°
B - Axis: 360.000 Gr°
Table load: 600
Table Ø: 630mm
Feed rate X-Axis: 48000mm/min.
Feed rate Y-Axis: 48000mm/min.
Feed rate Z-Axis: 48000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 40kW
Speeds / ranges: 12000Rpm
ATC / revolver: 32
Coolant true spindle / Bar:40
Number of controlled axis:5
Chip conveyor: Yes
Coolantsystem: Yes
Length: 6200mm
Width: 2800mm
Height: 3200mm
Weight: 17000kg

Specifications:

X - Travel: 760mm
Y - Travel: 820mm
Z - Travel: 560mm
A - Axis: + 30 to - 120 Gr°
B - Axis: 360.000 Gr°
Table load: 600
Table Ø: 630mm
Feed rate X-Axis: 48000mm/min.
Feed rate Y-Axis: 48000mm/min.
Feed rate Z-Axis: 48000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 40kW
Speeds / ranges: 12000Rpm
ATC / revolver: 32
Coolant true spindle / Bar:40
Number of controlled axis:5
Chip conveyor: Yes
Coolantsystem: Yes
Length: 6200mm
Width: 2800mm
Height: 3200mm
Weight: 17000kg

Dealer name:

Mach4Metal Netherlands, Babberich
