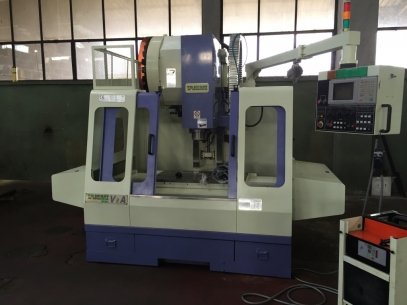

- Mitsubishi CNC - Axes X, Y, Z 810 mm - 510-560
- 1000 x 510 mm table - T slot 5 x 18 x 100 mm
- Max Load Kg Table 600 - Distance spindle nose / table mm 150/710
- Distance spindle nose / upright mm 570
- Rapid mm / min 15.000
- Advancements mm / min 7000
- Spindle taper ISO 40
- Engine output 7.5 kW spindle
- Spindle speed min / max g / min 8000
- Constant power g / min 750
- 24 seats RANDOM tool magazine ISO 40
- Diameter / max adjacent tools mm 90/250
- Diameter / max tools with 2 empty seats mm 180/250
- Maximum weight tool Kg. 7
- Machine weight 4,800 kg
- Machine dimensions 2,900 x 2,156 x 2,354 mm
1997
