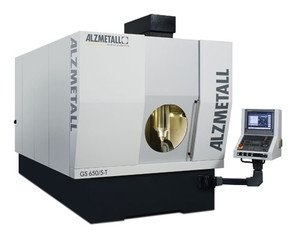

Working range
Travel X/Y/Z-axis 650 / 650 / 550 mm
Distance spindle-table min./max. 100 / 650 mm
Static table
Clamping surface (w x d) 900 x 800 mm
7 T-slots (DIN 650) along X-axis 14 H12 x 100 mm
1 Centered pilot T-slot 14 H7
Maximum table load 1800 kg
Drive System
Digital AC servo motors
Maximum rapid travel X/Y/Z. 45 [60] m/min
Maximum spartial acceleration X/Y/Z 10 [17] m/s²
Maximum feed force X/Y/Z (40% Power-On-Duration) 5,5 - 9,5 - 5,5 kN
Main spindle motor
High frequency motor spindle
Tool clamping: ISO-Taper HSK-A63, DIN 69 893
Maximum drive power (40% Power-On-Duration) 14 [23] [40] kW
RPM range : variable 10.000 [18.000] [30.000] [42.000] Rpm
Maximum torque (40% Power-On-Duration) 90 [73] [36] [7] Nm
Tool Magazine
Tool positions with 1 chain 33 [63] [75]
Max. tool diameter when fully loaded 95 mm
Maximum tool diameter (neighbour positions unloaded) 130 mm
Maximum tool length 300 [350] mm
Maximum tool weight 10 kg
Tool change time approx. 2 s
Chip-to-chip time approx. 6 s
Incremental linear encoders X-Y-Z direct absolut
Positional tolerance Tp acc. to DIN ISO 230-2 0,007 mm
Machine weight approx. 12.000 kg
CNC control Heidenhain [Siemens]
