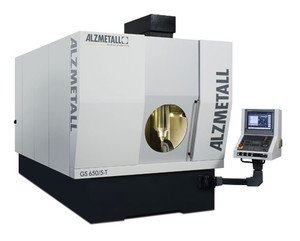

Working range
Travel X/Y/Z-axis 650 / 650 / 550 mm
Distance spindle-table min./max. 100 / 650 mm
4th and 5th NC-axis (integrated)
Clamping surface (round table) ø 470
8 T-slots (DIN 650) 4 x 14 H12 and 4 x 14 H7
Radial T-slots 8 x 45°
Maximum table load 500 kg
Swivel range of the A-axis ± 120°
Rotation range of the X-axis 360°
Table surface below A-Axis 100 mm
Drive system
Digital AC servo motors
Maximum rapid travel X/Y/Z 45 [60] m/min
Maximum spatial acceleration X/Y/Z 10 [17] m/s²
Maximum feed force X/Y/Z (40% Power-On-Duration) 5,5 - 9,5 - 5,5 kN
Main spindle motor
High frequency motor spindle
Tool clamping: ISO-Taper HSK-A63, DIN 69 893
Maximum drive power (40% Power-On-Duration) 14 [23] [40] kW
RPM range : variable. 10.000 [18.000] [30.000] [42.000]
Maximum torque (40% Power-On-Duration) 90 [73] [36] [7] Nm
Tool Magazine
Tool positions with 1 chain 33 [63] [75]
Max. tool diameter when fully loaded 95 mm
Maximum tool diameter (neighbour positions unloaded) 130 mm
Maximum tool length 300 [350] mm
Maximum tool weigth 10 kg
Tool change time approx. 2 s
Chip-to-chip time approx. 6 s
Incremental linear encoders X-Y-Z direct absolute
Positional tolerance Tp acc. to DIN ISO 230-2 0,007 mm
Incremental linear transducers 4th/5th axis direct absolute
Machine weight approx. 13.000 kg
CNC control Heidenhain [Siemens]
