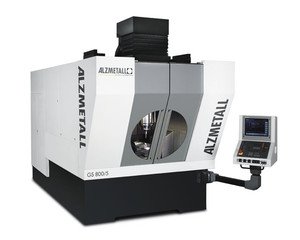

Working range
Travel X/Y/Z-axis 800 / 800 / 600 mm
Distance spindle-table min./max.. 70 / 670 mm
4th and 5th NC-axis (integrated)
Clamping surface (round table) ø 630 mm
8 T-slots (DIN 650), 8 x 45° 4 x 14 H12
4 x 14 H7
Maximum table load 500 kg
Swivel range of the A-axis ± 120°
Rotation range of the C-axis 360°
Drive System
Digital AC servo motors
Maximum rapid travel X/Y/Z 45 [60] m/min
Maximum spatial acceleration 10 [17] m/s²
Maximum feed force X/Y/Z (40% Power-On-Duration) 10 kN
Main spindle motor
High frequency motor spindle
Tool clamping: ISO-Taper DIN 69 871-A 40, [HSK-A63,
DIN 69 893]
Pull-stud DIN 69872-19
Maximum drive power (40% Power-On-Duration) 40 [22] kW
RPM range : variable 12.000 [18.000] [24.000]
Maximum torque (40% Power-On-Duration) 139 [66] Nm
Tool Magazine
Tool positions with 1 chain [2 chains] 33 [66] [126] [150]
Max. tool diameter when fully loaded 95 mm
Maximum tool diameter (neighbour positions unloaded) 150 mm
Maximum tool length 300 [350] [400] mm
Maximum tool weight 10 kg
Tool change time approx. 2 s
Chip-to-chip time approx. 6 s
Incremental linear encoders direct
Positional tolerance Tp acc. to DIN ISO 230-2 0,007 mm
Machine weight approx. 15.500 kg
CNC-control Heidenhain [Siemens]
