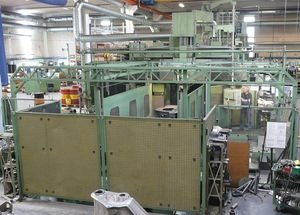

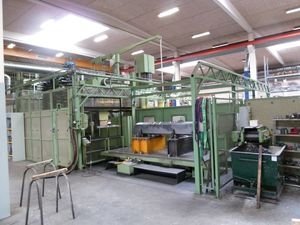

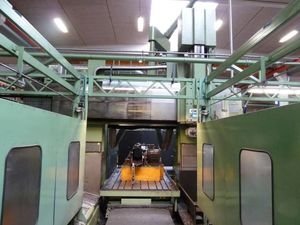

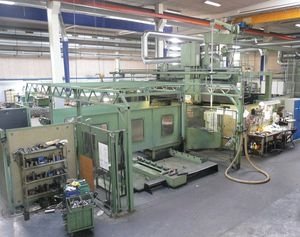

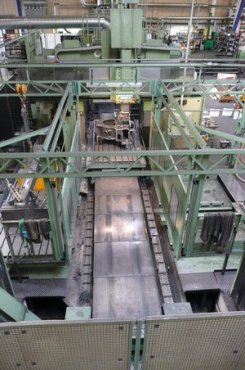

CNC Double Column 5-face machining centre with Pallet changer

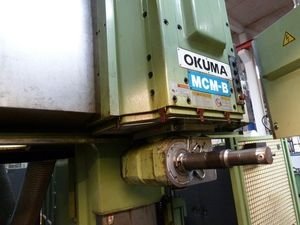

Okuma MCM-B 20E 20x40 APC
Specifications:
CNC Double Column 5-face machining centre with Pallet changer;
Okuma MCM-B 20E 20x40 APC;
Year of manufacture 1998;
OSP 7000M CNC control;
Two pallet machine (automatic pallet changer);
Pallet size 3700 x 1500 mm;
Pallet load max. 6000 kg (not using pallet 15000 kg);
Travels:
Table longitudinal travel X 4000 mm;
Spindle cross travel Y 2700 mm;
Spindle vertical travel Z 800 mm;
Cross rail vertical travel W 700 mm;
Distance between the columns (milling width) 2050 mm;
Distance spindle end to table surface max. 1220 mm;

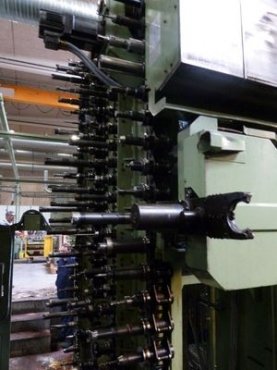

120 station tool magazine and automatic tool changer;

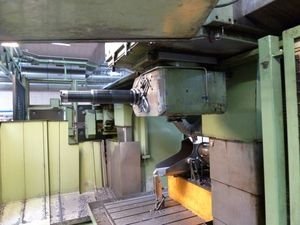

Universal Horizontal/Vertical combined milling head for 5-face machining;
Machine is in excellent condition.
