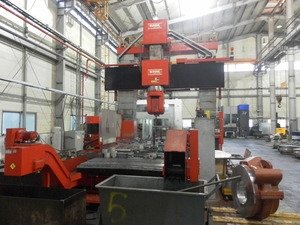

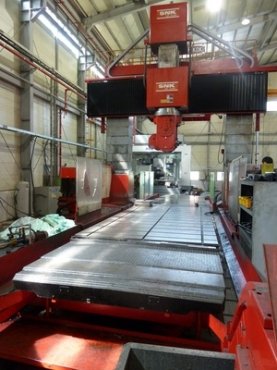

5-Axis Portal Milling Machine / Double Column Machining Centre;
Table size 4000 x 2000 mm;
Table load capacity 15000 kg.
Travels: X travel table longitudinal 4250 mm.
Y travel saddle cross 2900 mm.
Z travel spindle vertical 600 mm.
W travel crossrail vertical 850 mm.
Spindle to table 0 - 1450 mm.
Distance between the columns 2850 mm.
Spindle taper BT 50.
Spindle drive motor rating 30 KW.
Spindle speeds to 6000 rpm.
Torque max. 420 Nm.
40 station tool magazine.

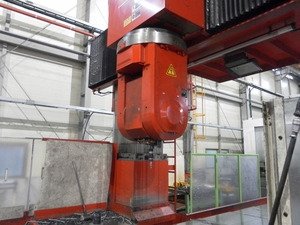

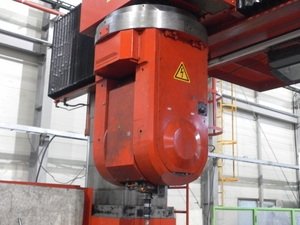

2 Axis rotating & tilting NC milling head;
Rotation axis C 0.001°/360°.
Tilting axis A 0.001° / +/- 95°.
Coolant through the spindle.

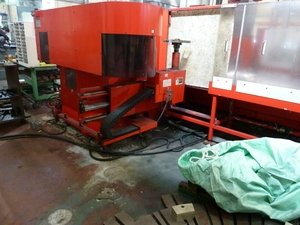

Chip conveyors.
Renishaw probing.

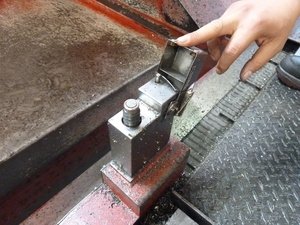

Tool length measurement and tool breakage control.
