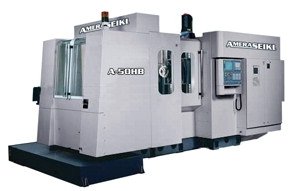

Over 40,000 lbs of solid machine tool built by Amera Seiki. Full B axis, 600 PSI CTS, 25 HP, in stock and ready to go.

A-50H Machine Specifications A-50HA / A-50HBA-50HA / A-50HB
MetricUS / Inch
Travels & Travel Speeds
Travels X/Y/Z mm(inch)700/650/650 27.6/25.6/25.6
Spindle center to pallet mm(inch)50-1700 1.97-27.5
Spindle nose to pallet mm(inch)150-800 5.9-31.5
Maximum workpiece diameter mm(inch)Ø70027.6
Maximum workpiece height mm(inch)800 31.5
Rapid speed X/Y/Z mm/min(ipm)36000 1417
Cutting federate mm/min(ipm)1-10000 (0.04-394)
Jog federate mm/min(ipm)1260 50
Pallet & Pallet Changer
Pallet size mm(inch)500x500 19.7x19.7
Maximum pallet capacity kg(lb)500 1100
Pallet surface configuration mm24-M16 tapped holes, Pitch 100
Pallet indexing 1°1°
Pallet No. 22
Pallet exchange typeRotaryRotary
Spindle
Spindle taper 7/24 TaperNo.40 / No. 50No.40 / No. 50
Spindle speed RPM10,000 / 6,00010,000 / 6,000
Optional spindle speed RPM12,000 / 10,00012,000 / 10,000
Hi/Low wind conversion RPM2000 / 12002000 / 1200
Maximum torque N-m(lb-ft)171 / 126 /
Spindle bearing inner dia. mm(inch) 70 / 1002.76 / 3.94
Tool shank ISO-40 / ISO-50CT-40 / CT-50
Magazine stations 60 / 4060 / 40
Max.tool dia./No adjacent tool mm(inch100/150 /120/2303.94/5.9 / 4.7/9.1
Maximum tool length mm(inch)350 13.8
Maximum tool weight kg(lb)7 / 1515.4 / 33
Tool selection Fixed PocketFixed Pocket
ControllerFANUC 18i-MBFANUC 18i-MB
Motors
Spindle motor KW(HP)22/26 30/35
Axes motor X/Y/Z/B KW(HP)5/5/4/1.66.7/6.7/5.4/2.2
Hydraulic motor KW(HP)2.23
Coolant motor KW(HP)1.62.2

Power
Power requirement KVA6060
Tank capacity
Hydraulic system L (gal)6016
Oil lubrication system L (gal)41
Coolant system L (gal)760200

Machine size
Height mm(inch)1970 117
Floor space mm(inch)3210 x 5200 127x205
Weight Kg(lb)18,900 41,000

127" X 205" X 117 high

41000
