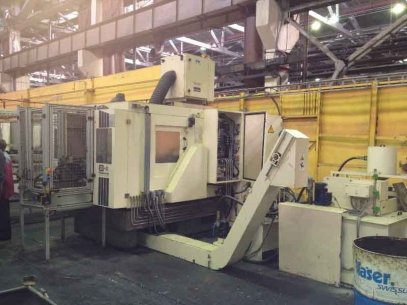

Horizontal CNC machining center Buderus 335 L 2I-TR made in Germany. CNC: Siemens Sinumerik.
Specifications:
Max bore diameter: 5-140 mm
Max grinding depth: 150 mm
Max swivel diameter over the table: 410 mm
Work-piece spindle height over the floor: 1200 mm
Work-piece spindle speeds NC-programmable: 0-3000 U/min
Table travelling:
-X axis: 1280 mm
-Z axis: 300 mm
Table speed infinitely variable:
-X axis: 0-90 m/min
-Z axis: 0-30 m/min
Infeed speed infinitely variable: 0,01-15 mm/min
Infeed depending on the travelling: 0,0005-0,1 mm
Boring work-piece spindle: 45 mm
Work-piece spindle flange: ø 220 mm
Acceptance ø chuck: 140 H6
Connected load of the machine: ca. 40 kW
