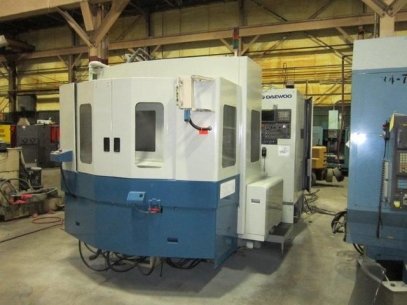

DAEWOO DMH-500 CNC HORIZONTAL MACHINING CENTER

MANUFACTURED IN 2002
MODEL: DMH-500
SERIAL NUMBER: HM500072

PALLET TABLE SIZE..........................................................19.7" X 19.7"
MAXIMUM TABLE LOAD..................................................1,760 Lbs.
PALLET CHANGE TIME.....................................................14 seconds
DEGREE OF INDEXING......................................................1°
TRAVELS (X)........................................................................31.5"
(Y)........................................................................25.6"
(Z).........................................................................25.6"
SPINDLE NOSE TO PALLET CENTER...............................5.9" to 31.5"
SPINDLE TAPER...................................................................CAT 50
SPINDLE SPEED...................................................................20 to 6000 RPM
GEAR RANGES.....................................................................(3)
SPINDLE MOTOR.................................................................25 HORSEPOWER
TOOL CHANGER CAPACITY.............................................60
RAPID TRAVERSE RATES...................................................945 IPM
CUTTING FEED RATES.......................................................472 IPM
MACHINE WEIGHT (APPROXIMATE)...............................29,700 Lbs.
MACHINE DIMENSIONS (APPROXIMATE)......................132"W x 218"D x 109"H


EQUIPPED WITH:
FANUC 16iMB CNC CONTROL
GEARED HEAD SPINDLE
SPINDLE ORIENTATION
RIGID TAPPING
USER DEFINABLE MACROS
CHIP CONVEYOR
WORK LIGHT
COOLANT THRU SPINDLE
FLOOD COOLANT
1000 PSI CHIP BLASTER
HYDRAULIC CLAMPING
